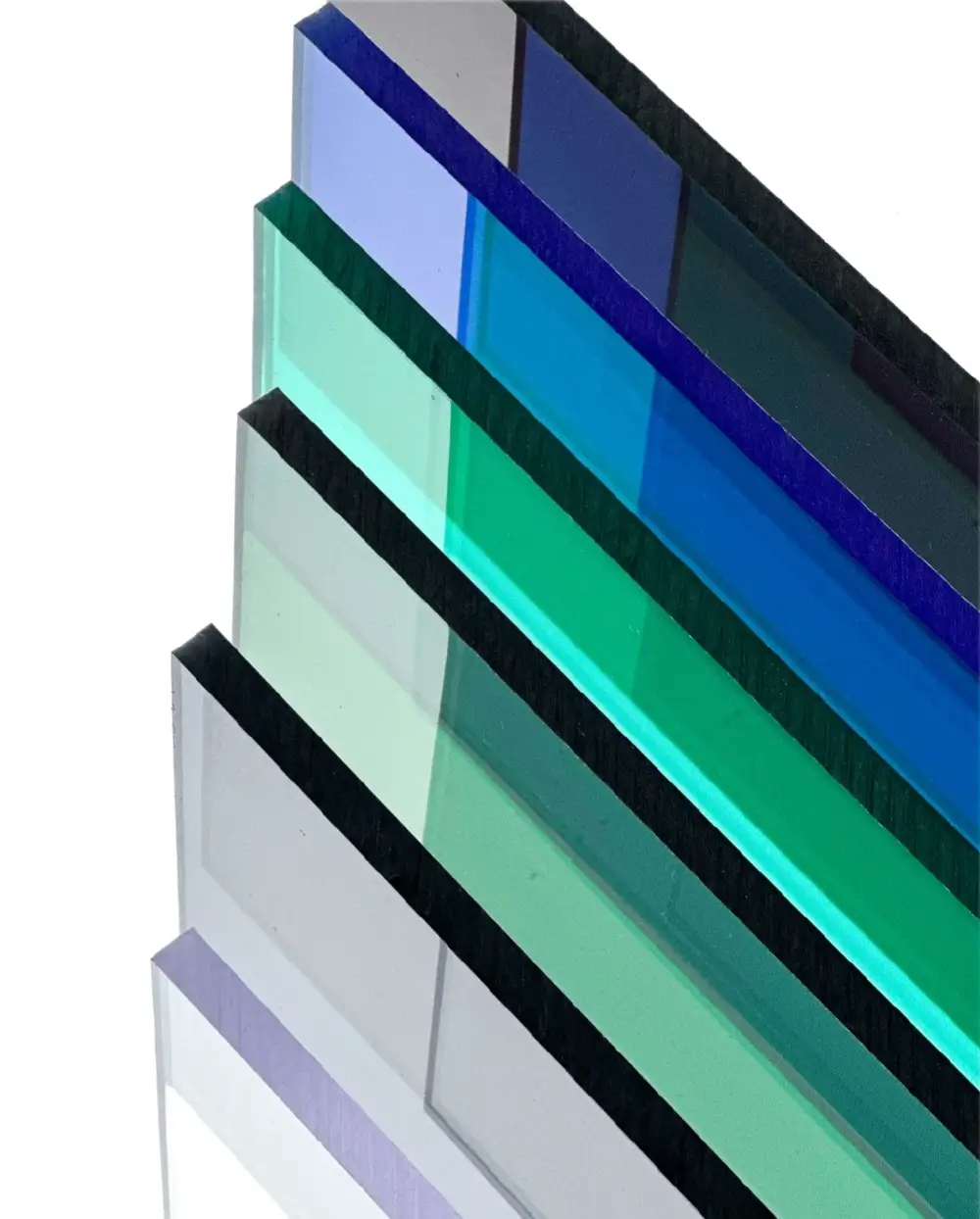

Marklon Polyglass®
PC Solid Sheet

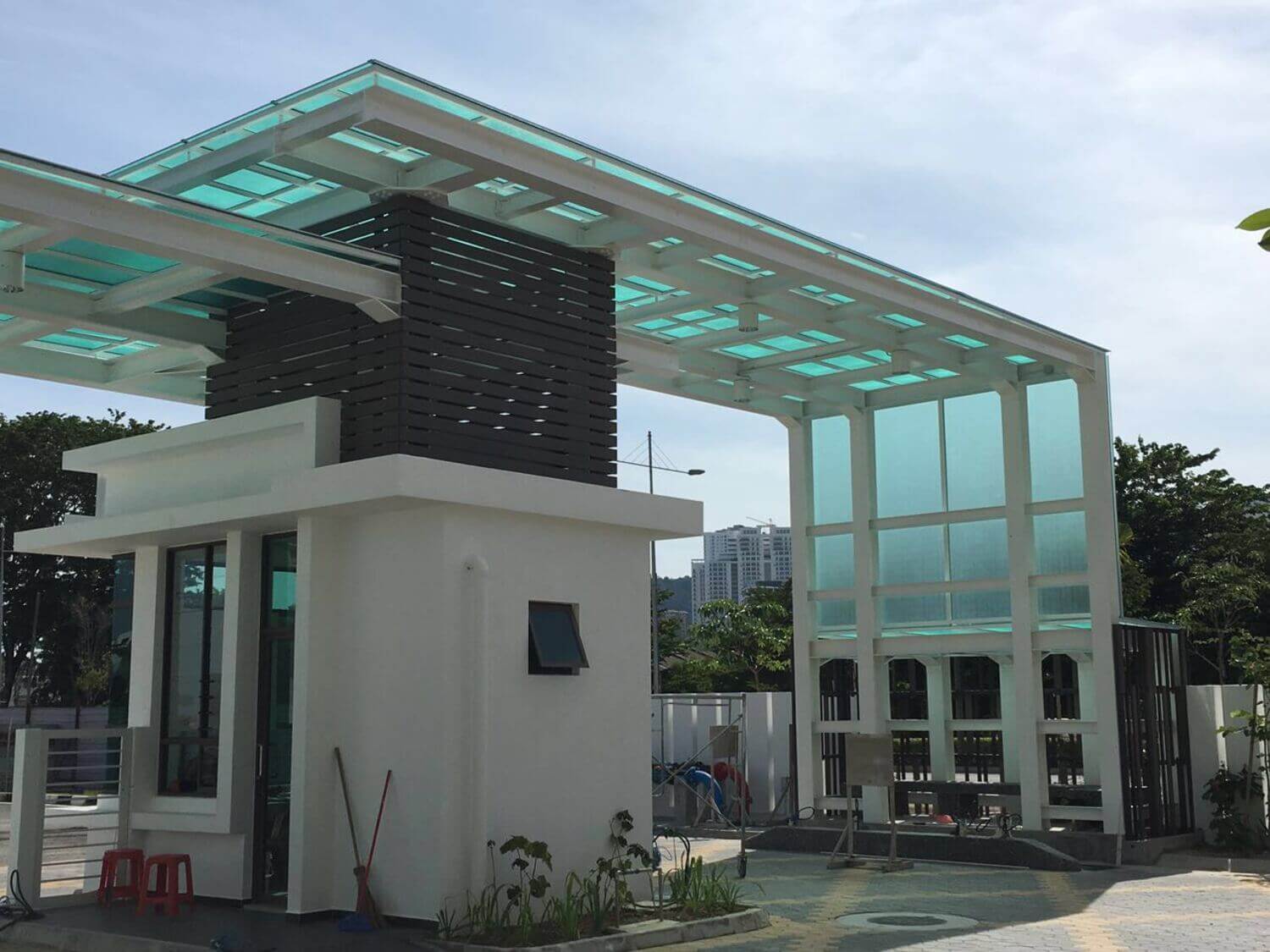

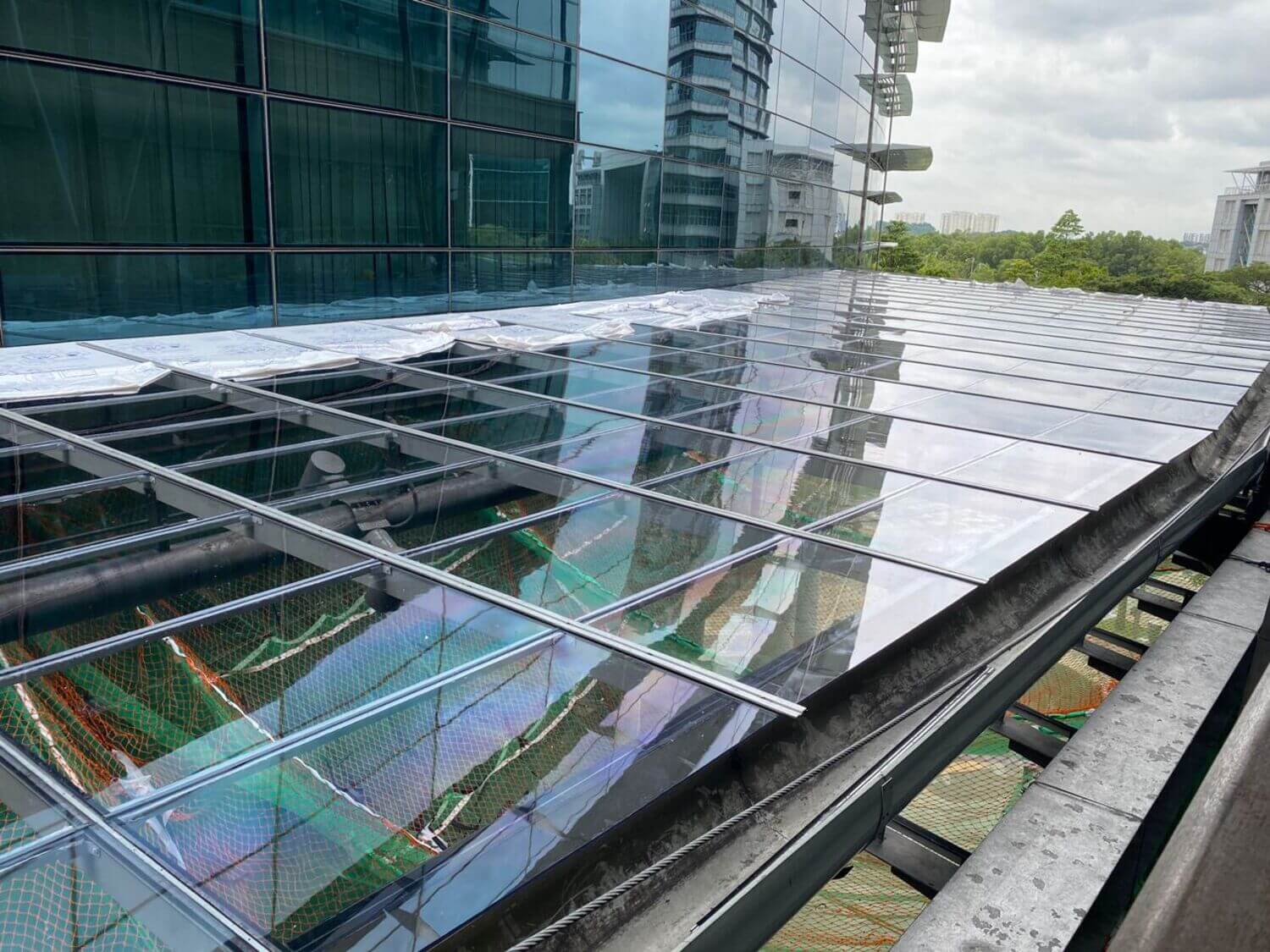

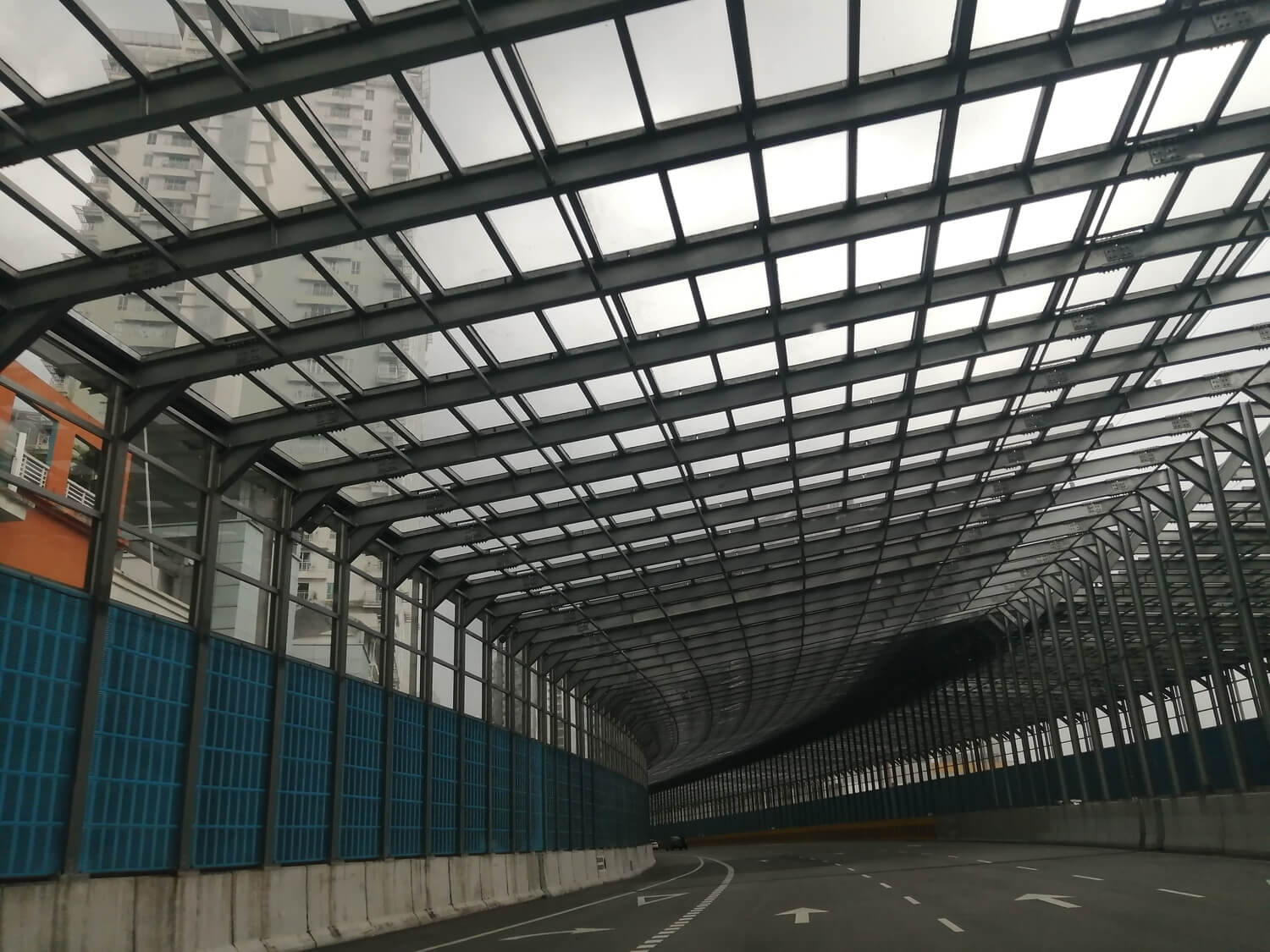

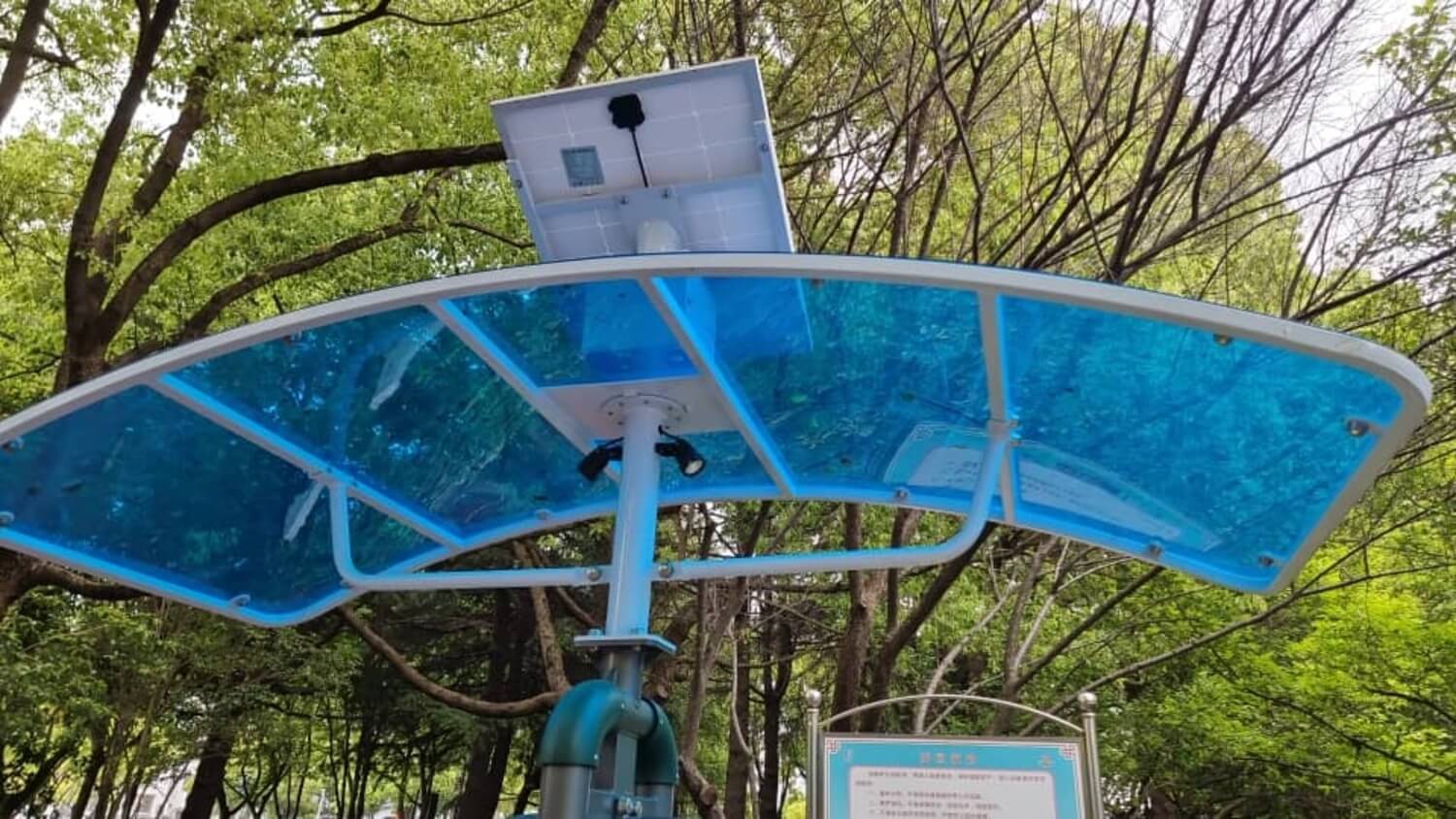

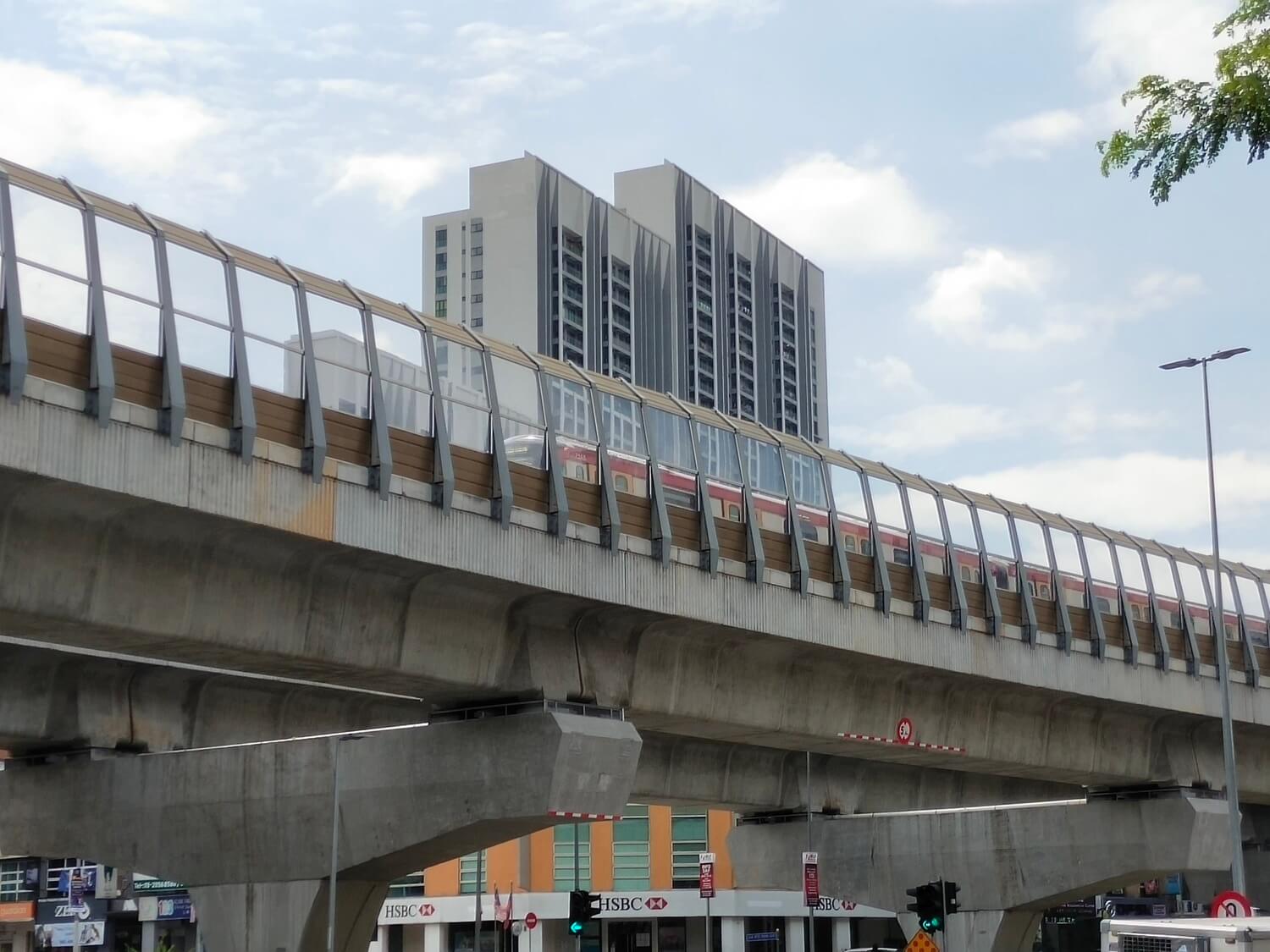

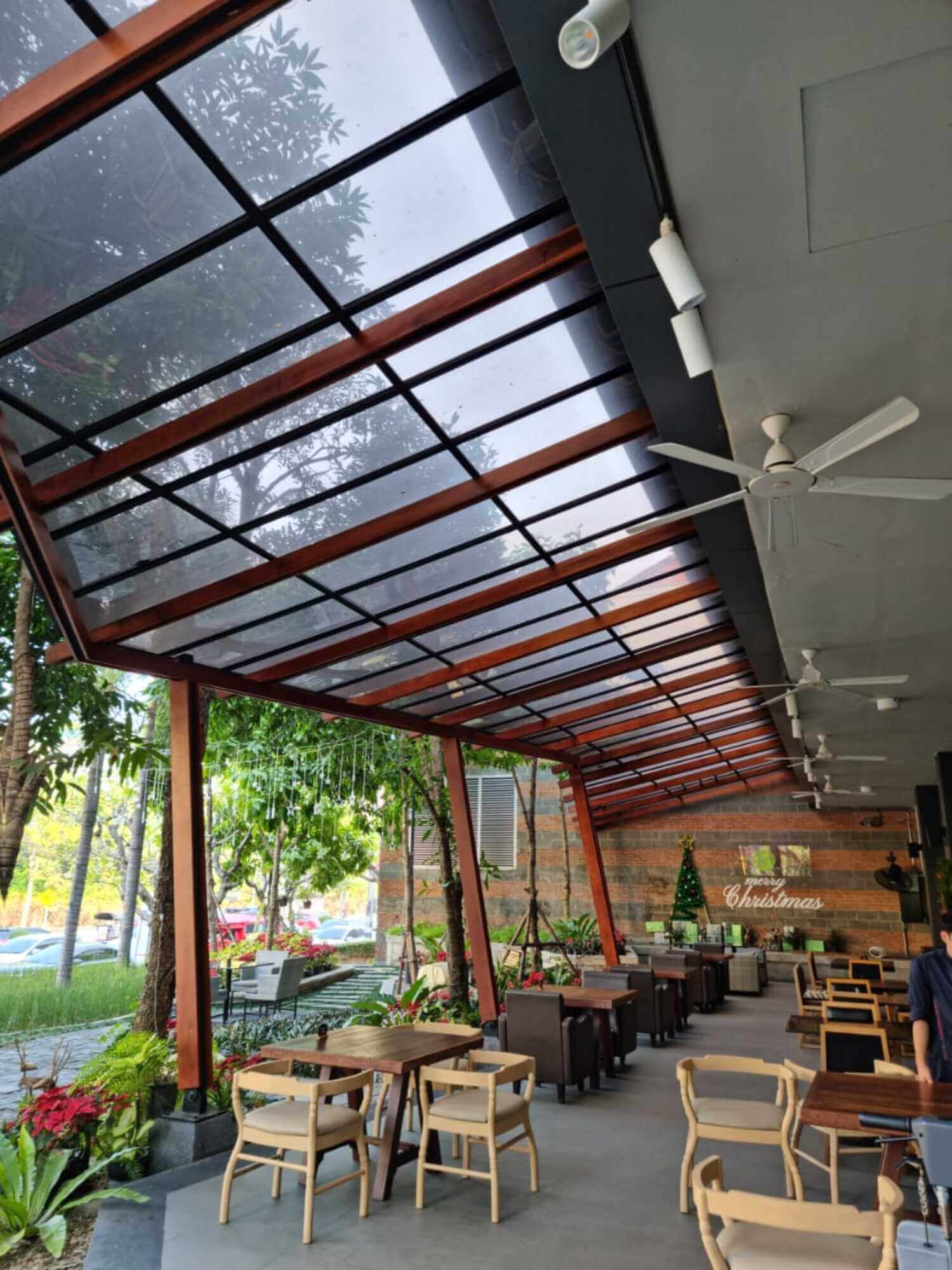

Polycarbonate is a polymer with a unique blend of desirable properties. Marklon Polyglass® Polycarbonate Solid Sheets are manufactured by the process of co-extrusion. It is a high performance plastic sheets which are the ideal choice for vertical, overhead and sloped glazing whenever durability and safety are as important aesthetics.
Its superior characteristics make polycarbonate solid sheet an outstanding engineering plastic. It is the perfect choice for applications requiring material which offers high light transmission, thermal insulation, light weight yet strong, high shock resistance, great economy, vandal resistance and design flexibility.
Product Features
High impact strength makes its virtually unbreakable and resistant to fracture
Good electrical insulation properties
UV light resistant to avoids extreme colour deterioration
High degree of transparency and light transmission
Low flammability (fire resistant)
Light weight & design flexibility
High heat resistance, making it ideal for outdoor application
Introducing IR tech
Marklon Industries Sdn. Bhd. is proudly introducing an intelligent PC Solid Sheet – IR Tech. These latest Marklon Polyglass™ IR Tech PC Solid Sheet could reduce heat (caused by Infra Red Light) but still remain the amount of sunlight (Visible Light).
Features
4 mm solid sheet with UV and IR Addictive
Standard Size : 1.212M x 12.2M x 4.0mm (+/-10%)
Standard Pattern: Plane and Nu
Pigments are nano structured and clear transparent in polycarbonate.
Pigments are weathering stable; least lost of IR-protection during weathering
No color change during weathering
High Transparency- Less heat
Specifications & Statistics
- No standardized (ISO) procedure available
- Practically relevant set-up chosen
- Light Transmission up to 50% with only 0.38 % energy transmittance
- Reduce heat with shading co-efficient = 0.43%
- 10 years warranty on breakage and colour
- 15 years warranty on IR protection
(Terms & Conditions apply)
- 4mm solid sheet with UV Protective Layer and IR Addictive
- No significant change in optical properties for 6000 h of Xe-WOM. (equal 10 years of outdoor weathering)
Color & Pattern

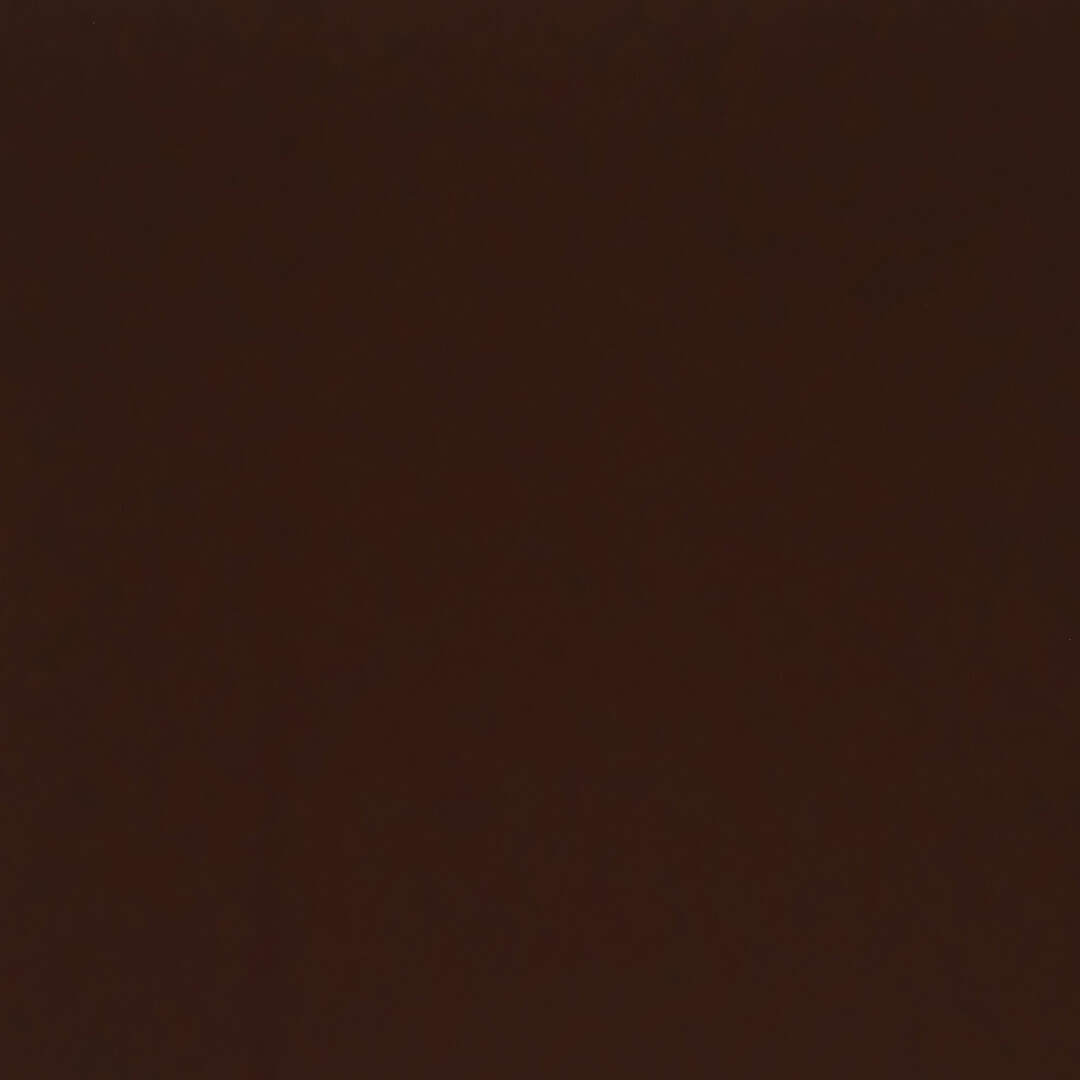

MK91 BROWN PLANE

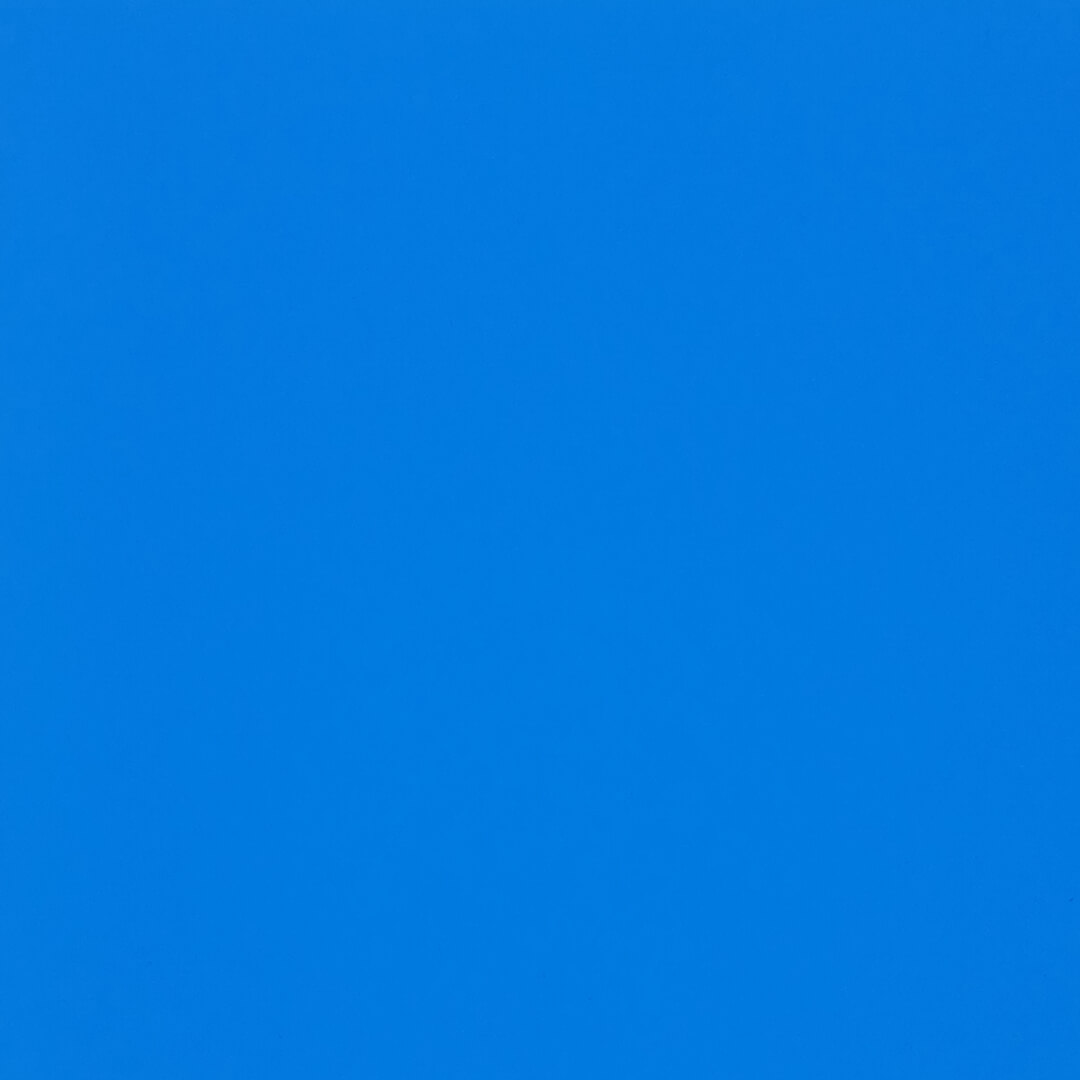

MK92 BLUE PLANE

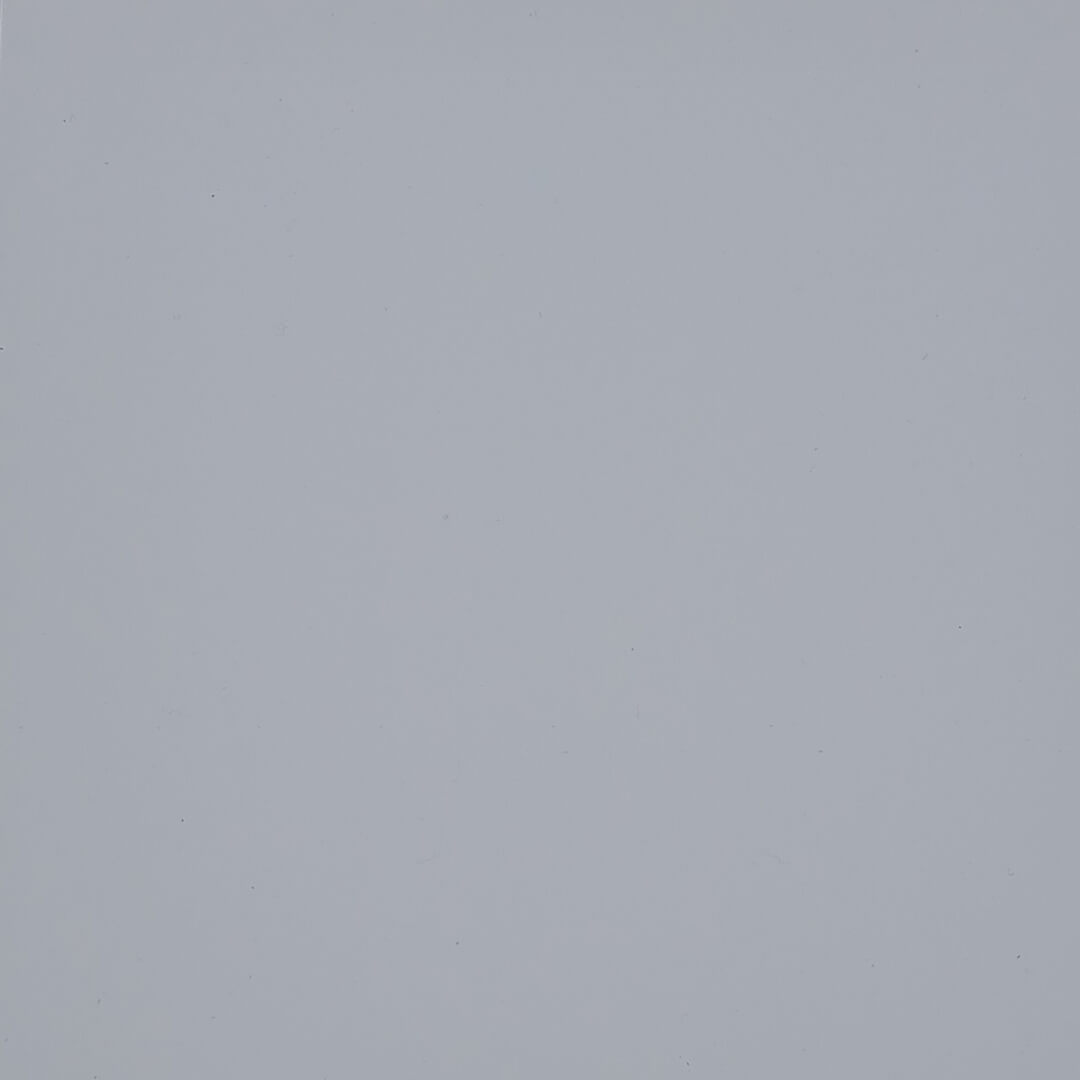

MK95 CLEAR PLANE

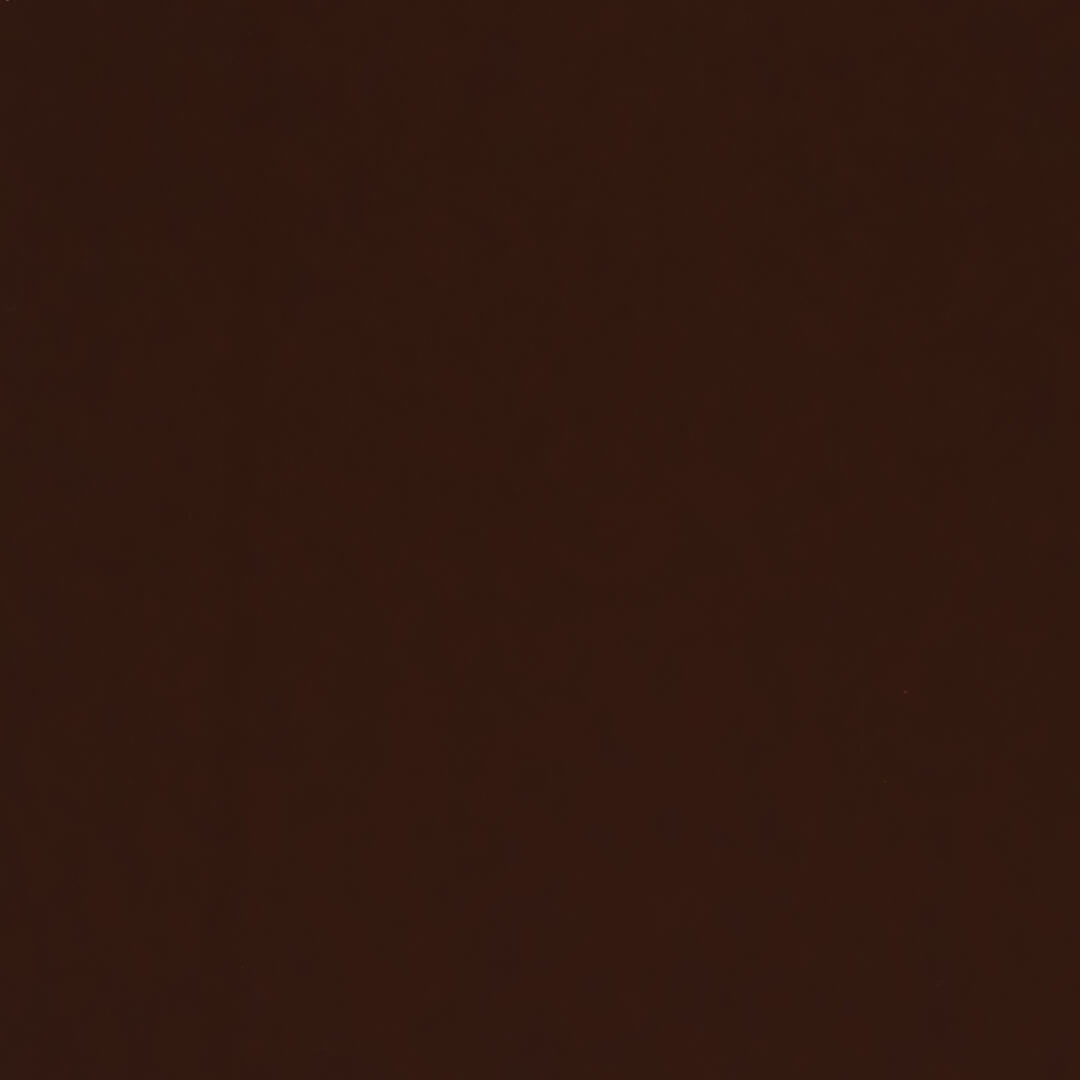

MK91D DARK BROWN PLANE

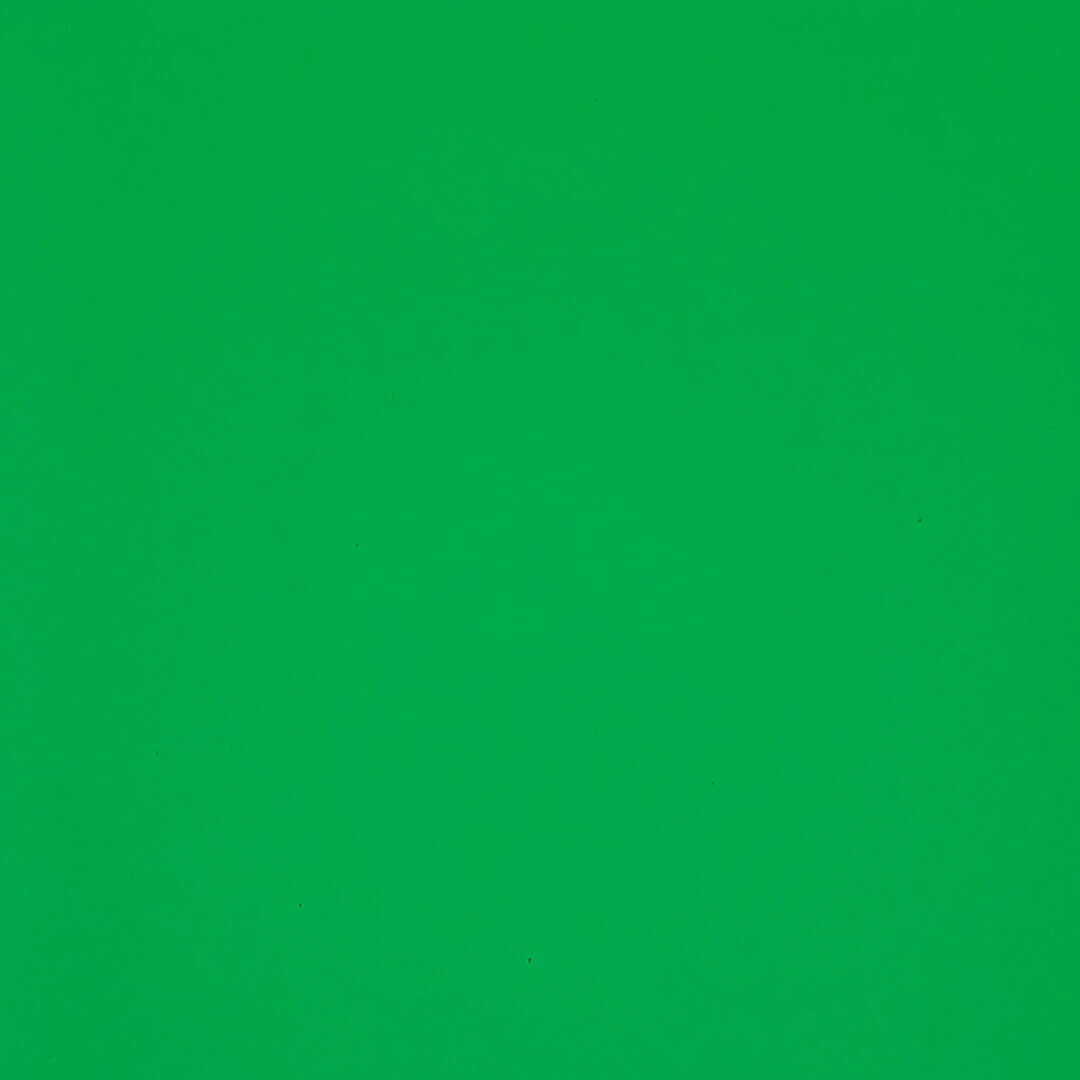

MK93 GREEN PLANE

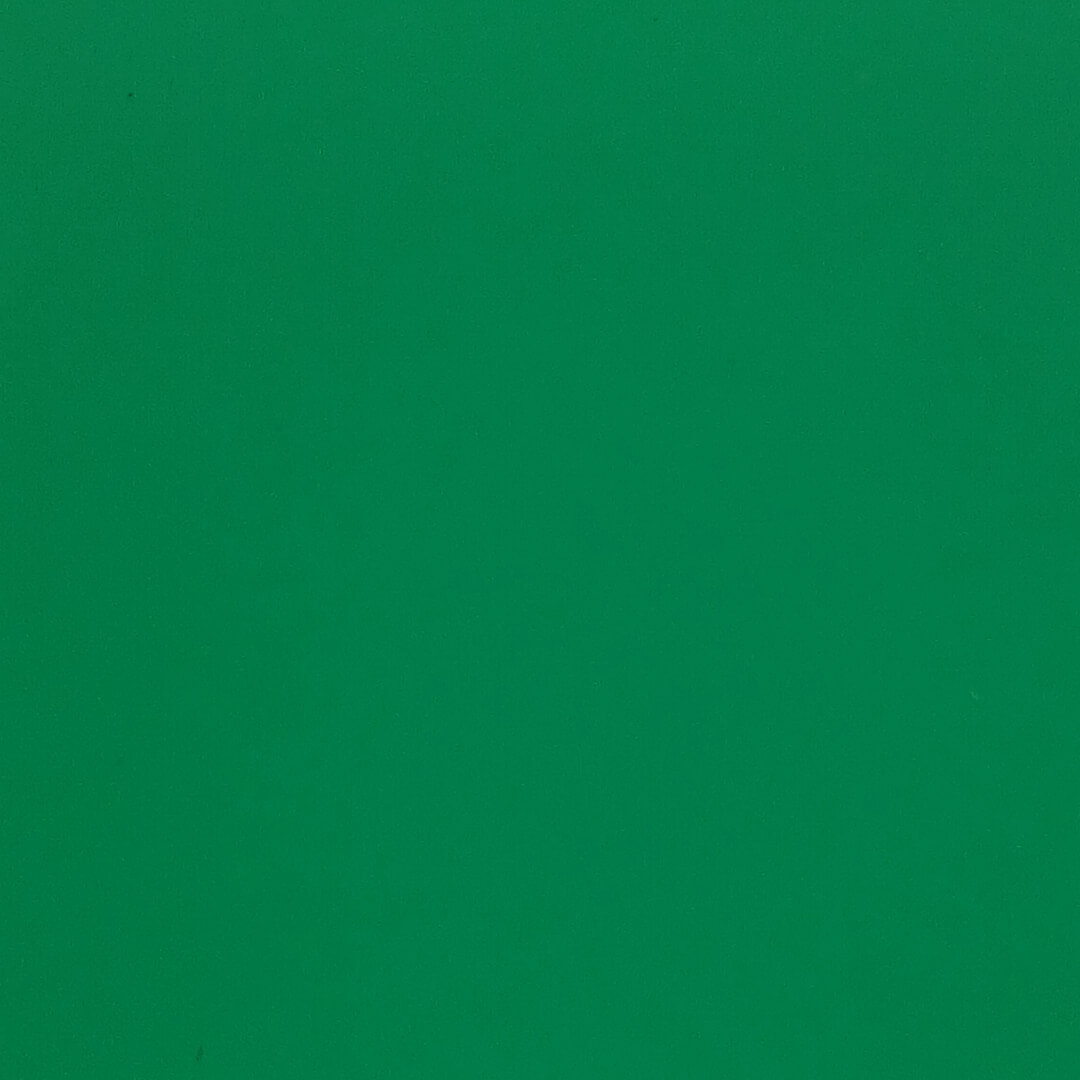

MK93SS GREEN PLANE SILVER SUNSTOP

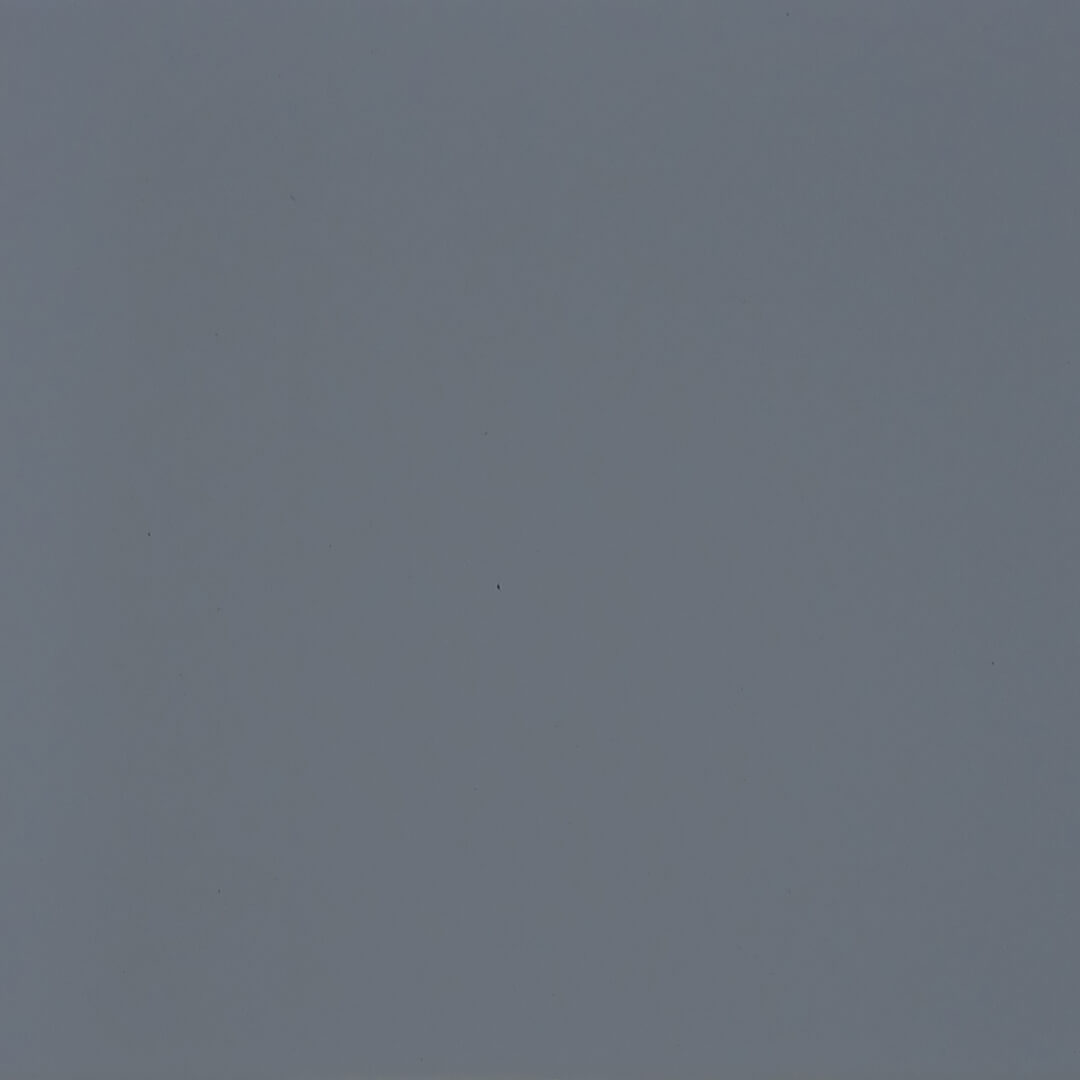

MK97 GREY PLANE

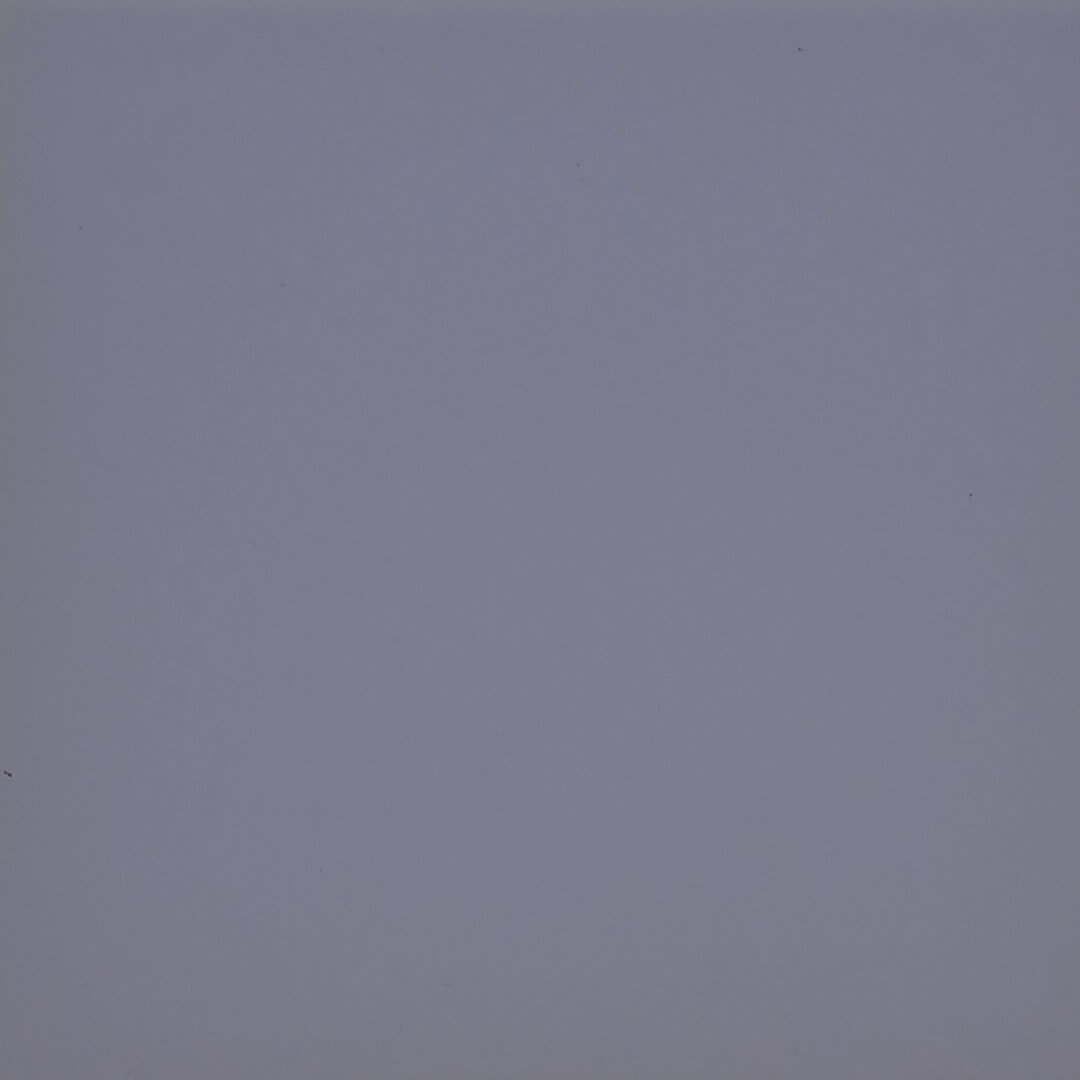

MK98 WHITE PLANE

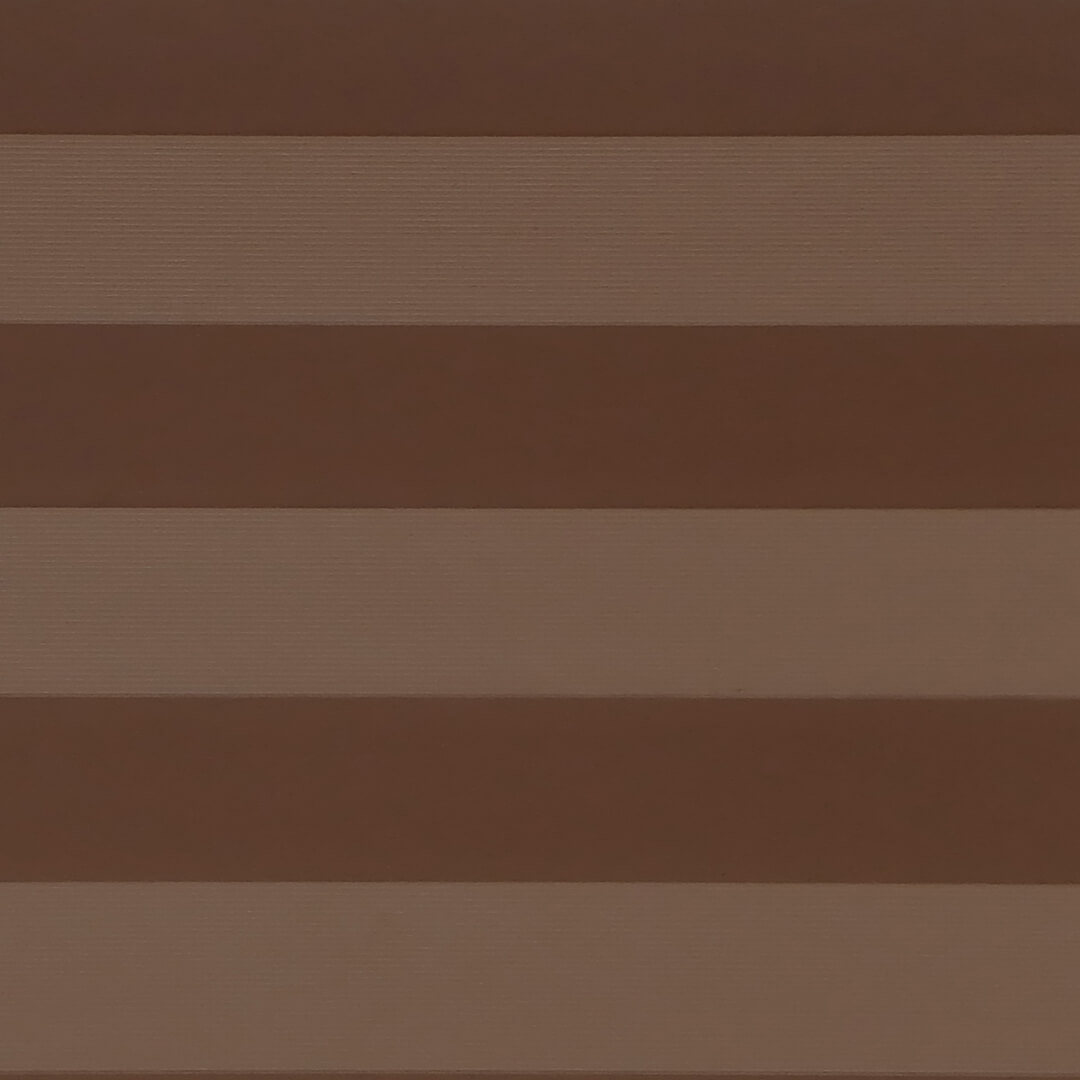

MK11 BROWN LINE

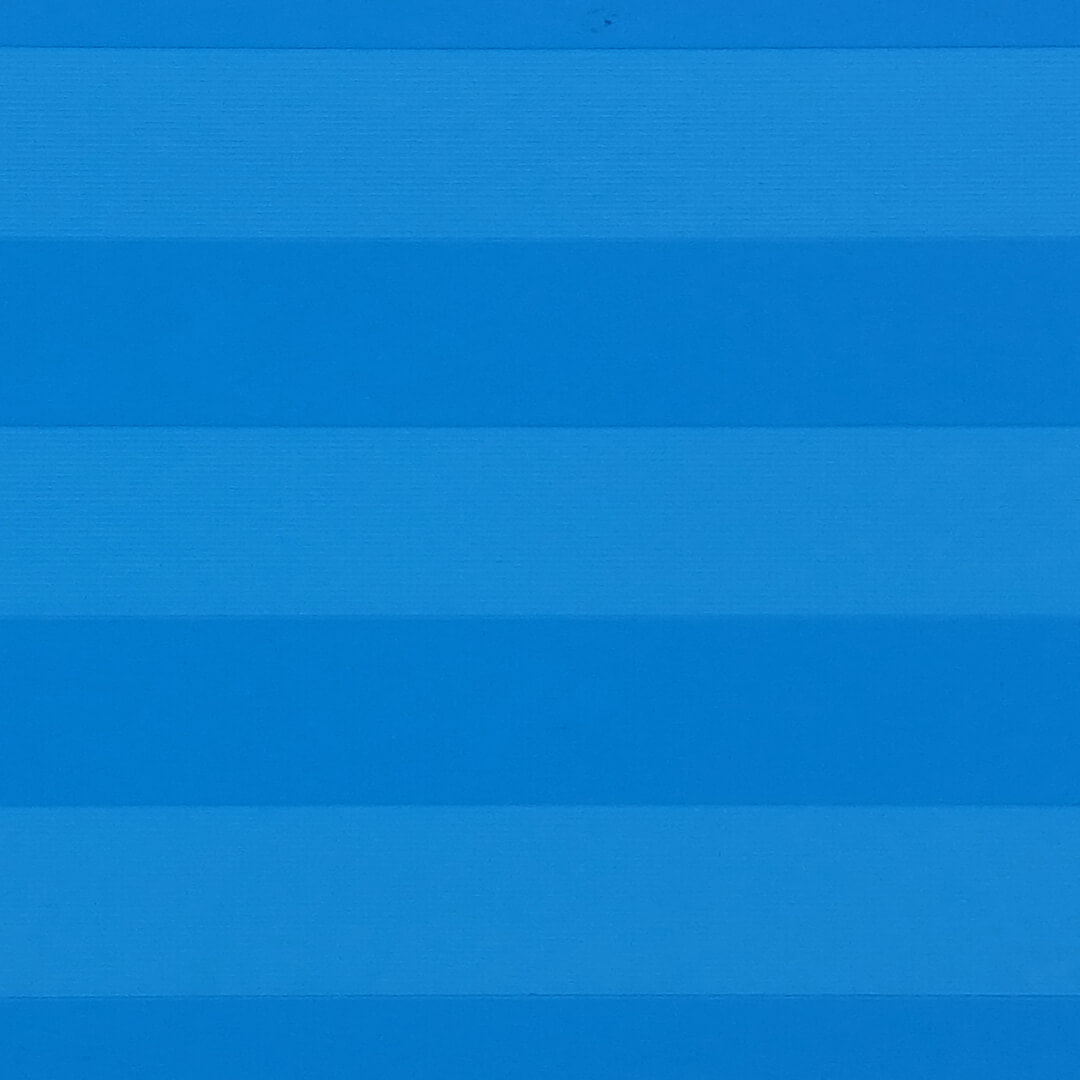

MK12 BLUE LINE

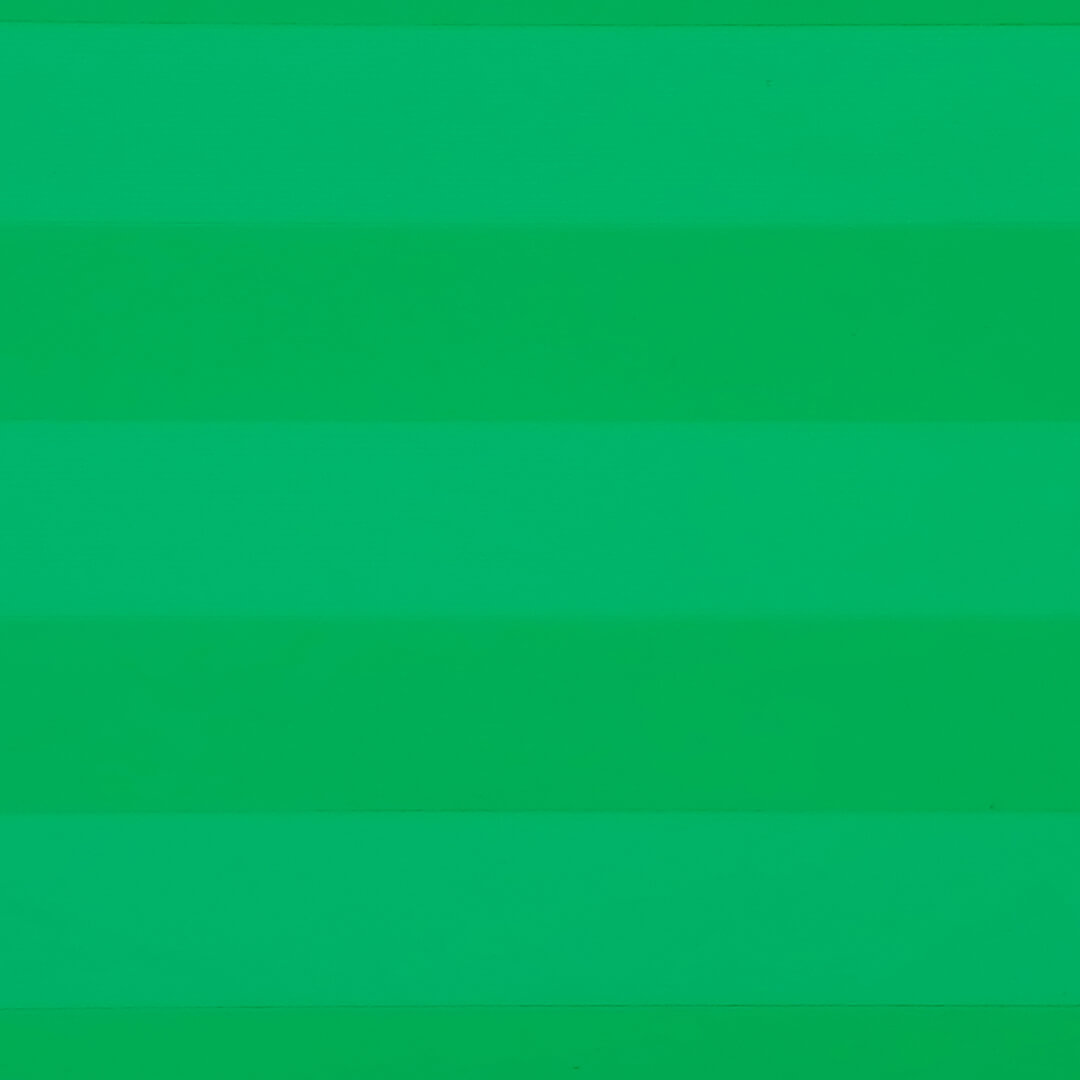

MK13 GREEN LINE

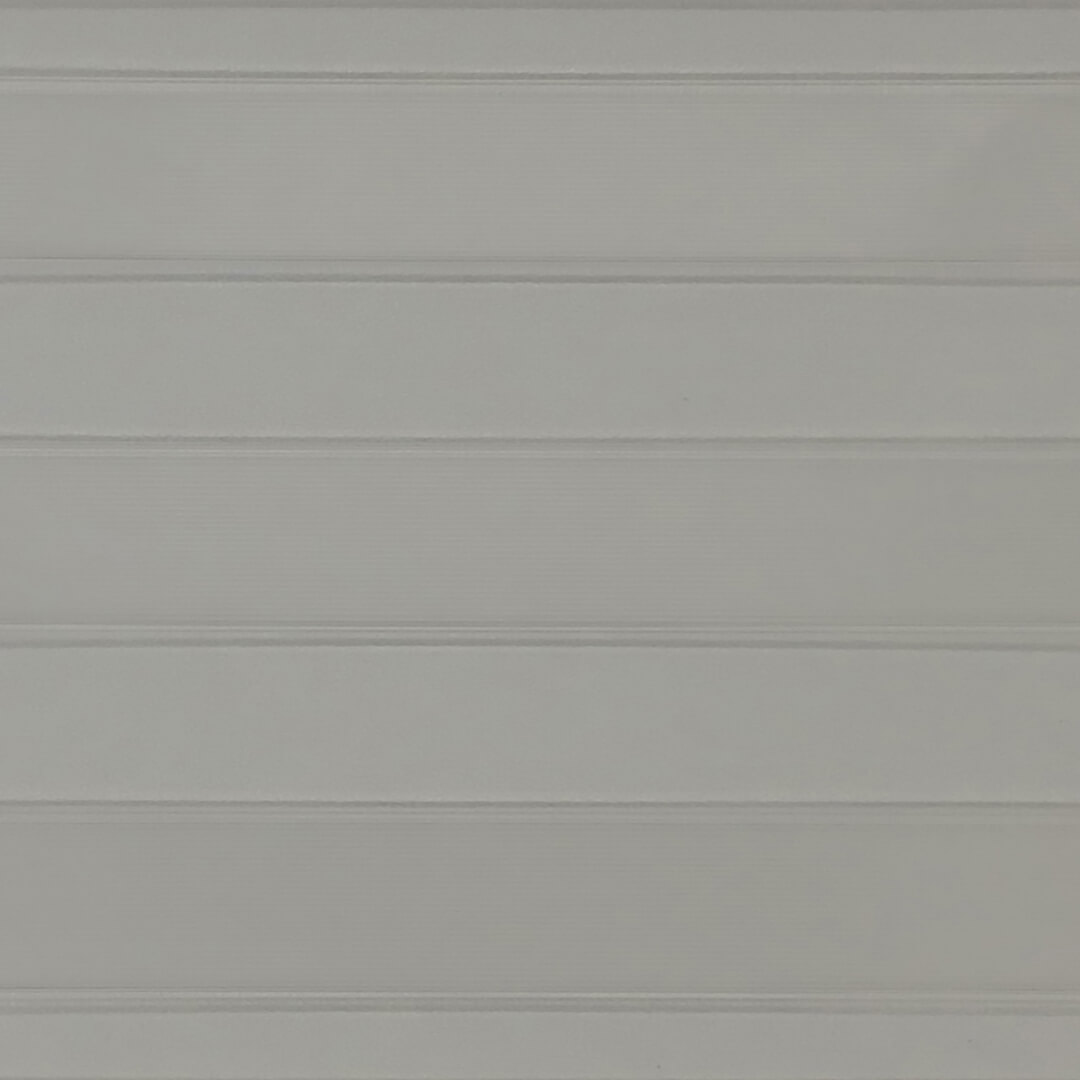

MK15 CLEAR LINE

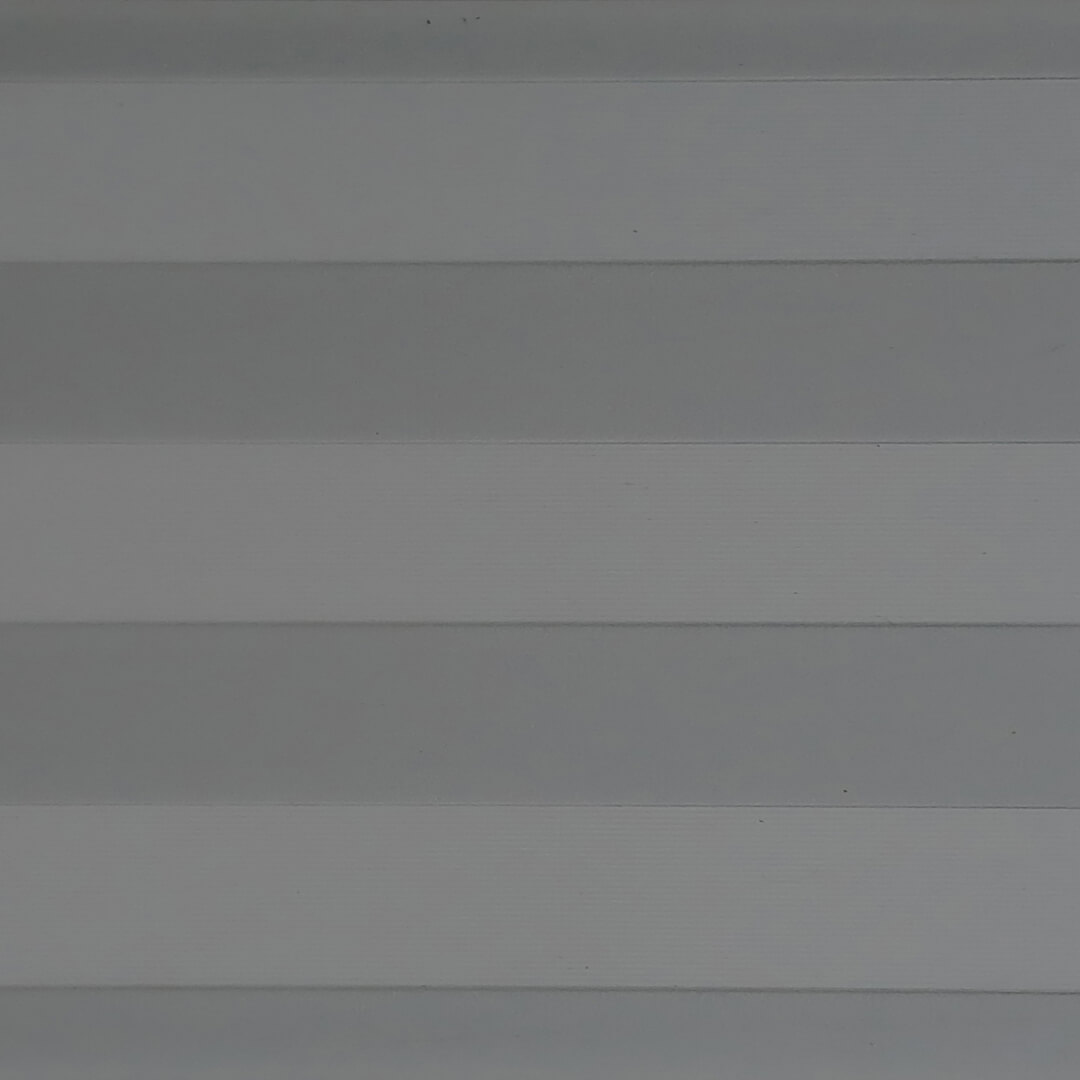

MK15SS CLEAR LINE SILVER SUNSTOP
MK71 BROWN GLASS

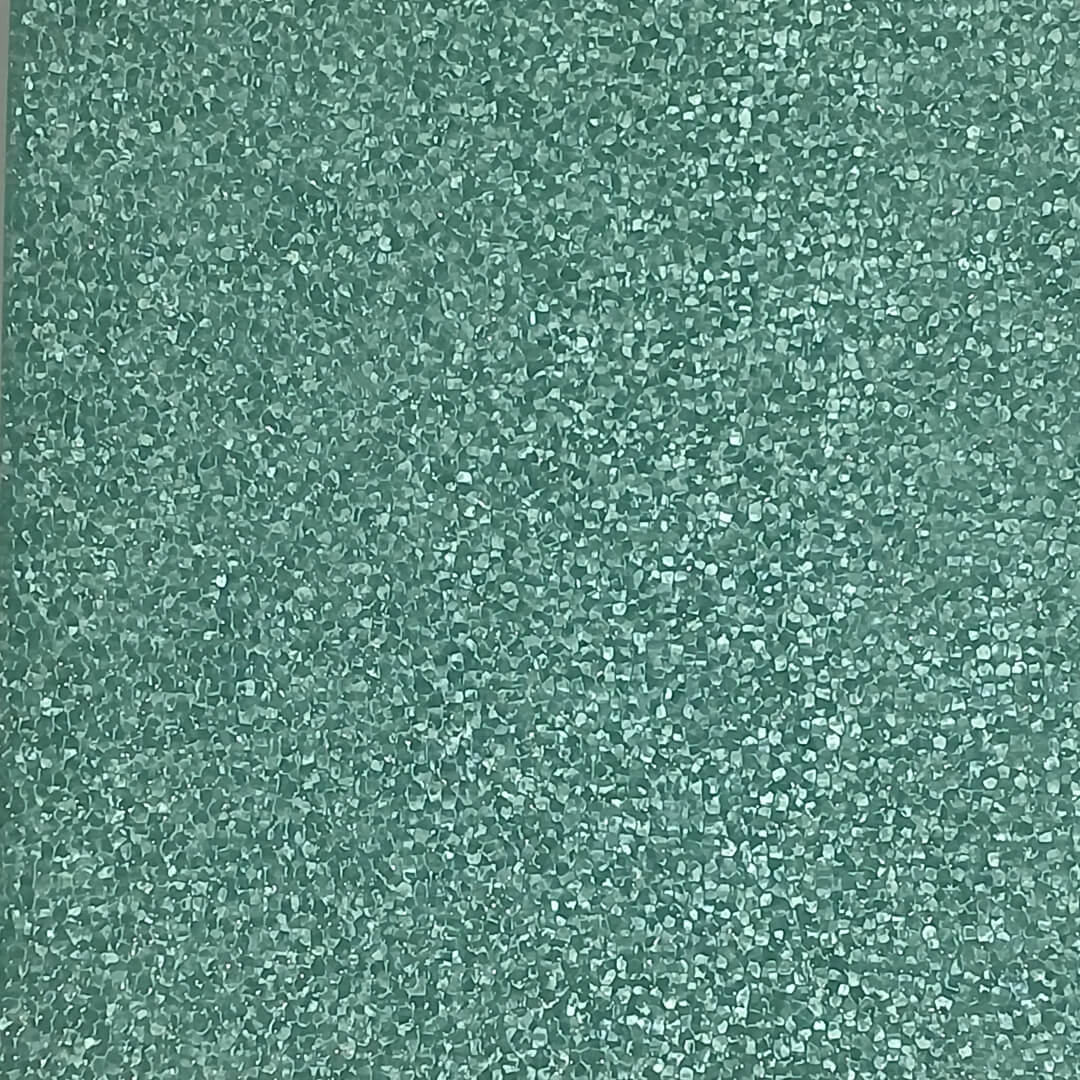

MK73 GREEN GLASS

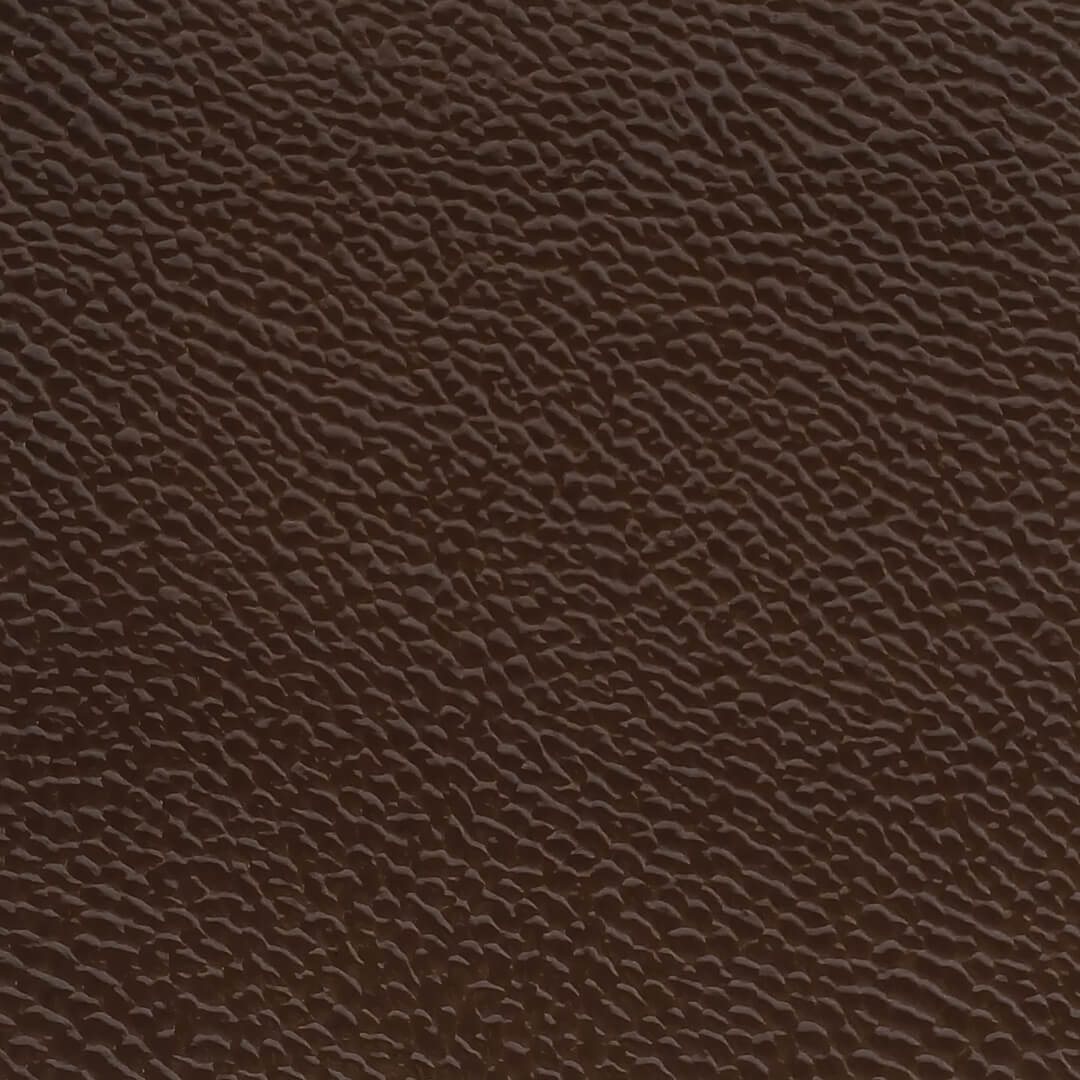

MK51 BROWN NU

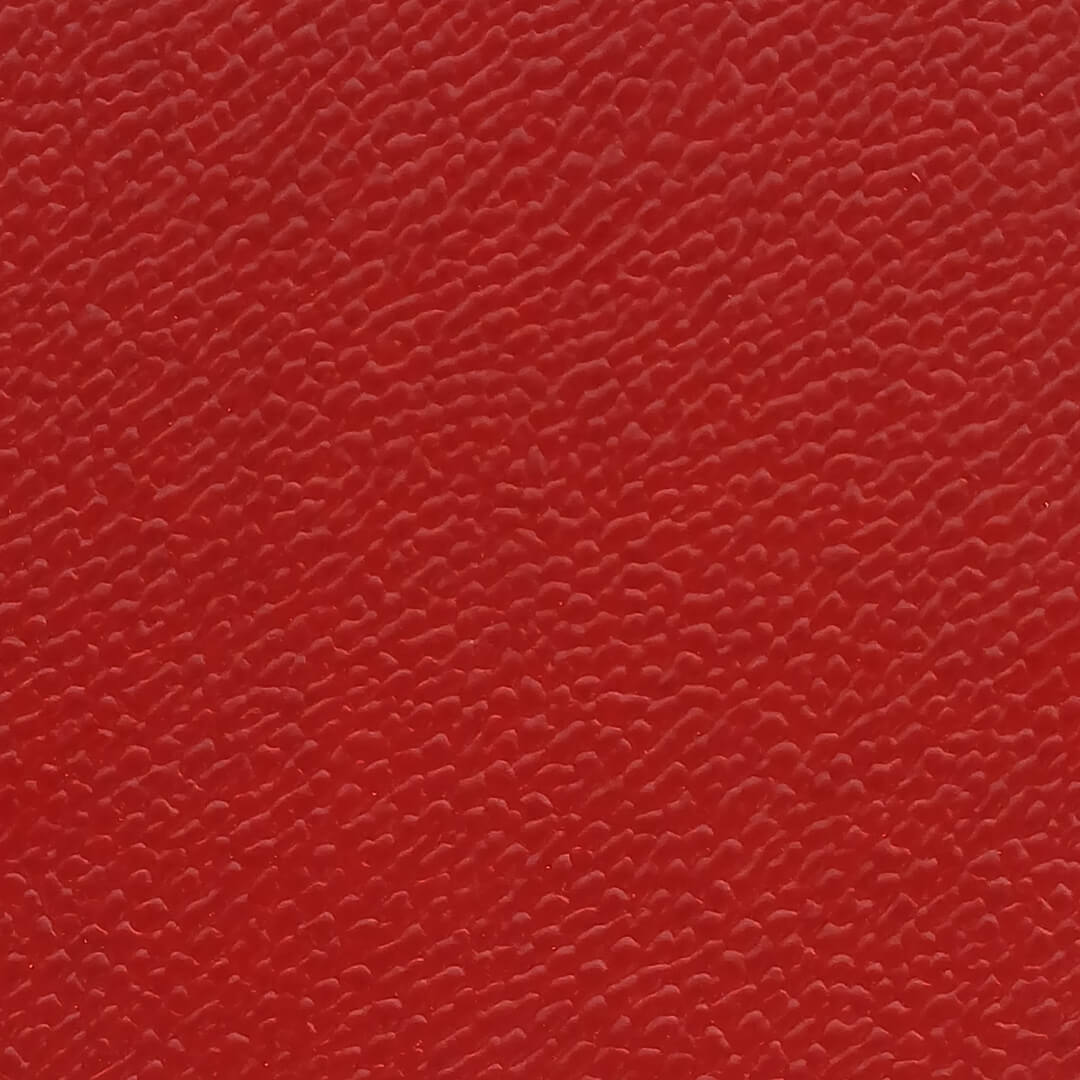

MK5RD RED NU

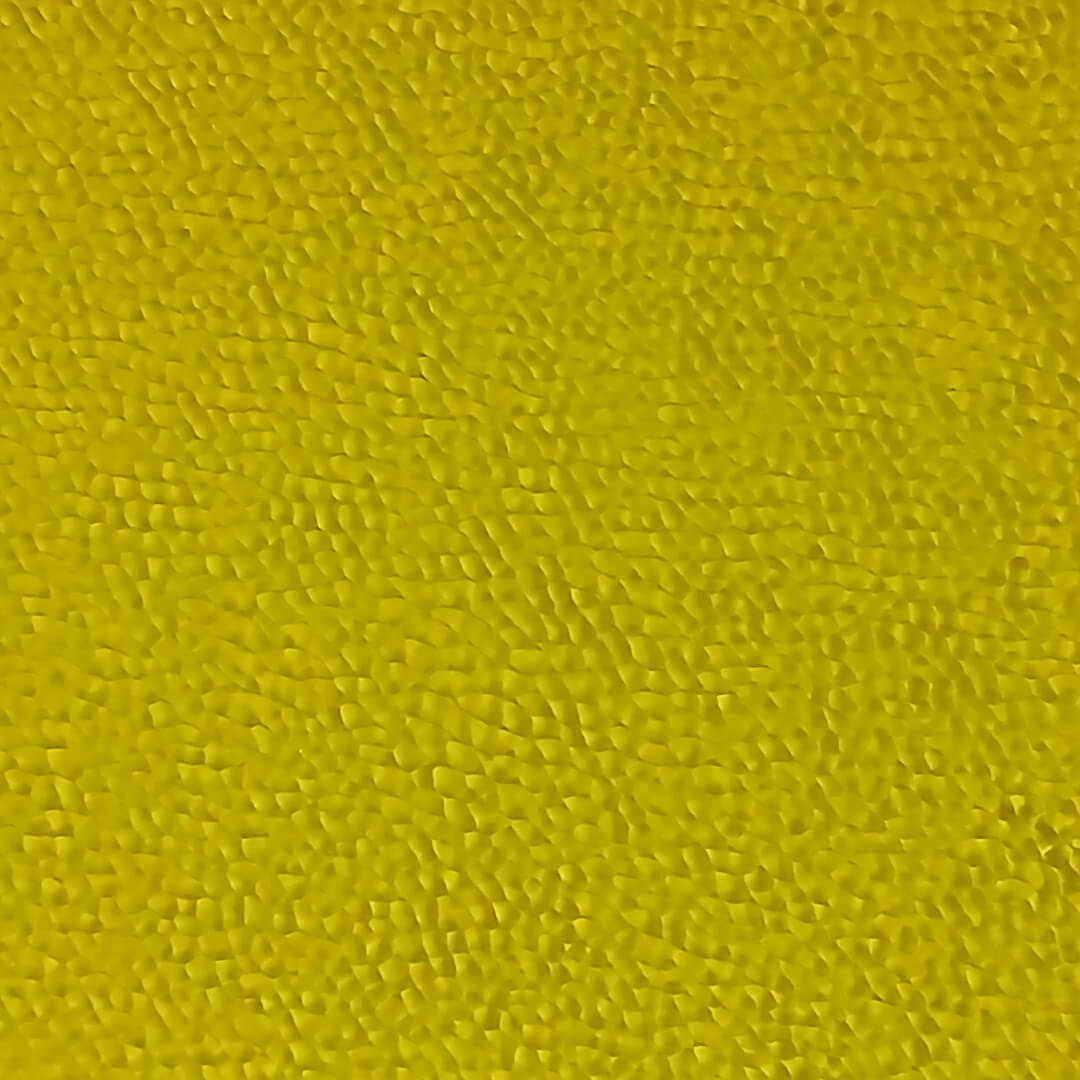

MK5YW YELLOW NU

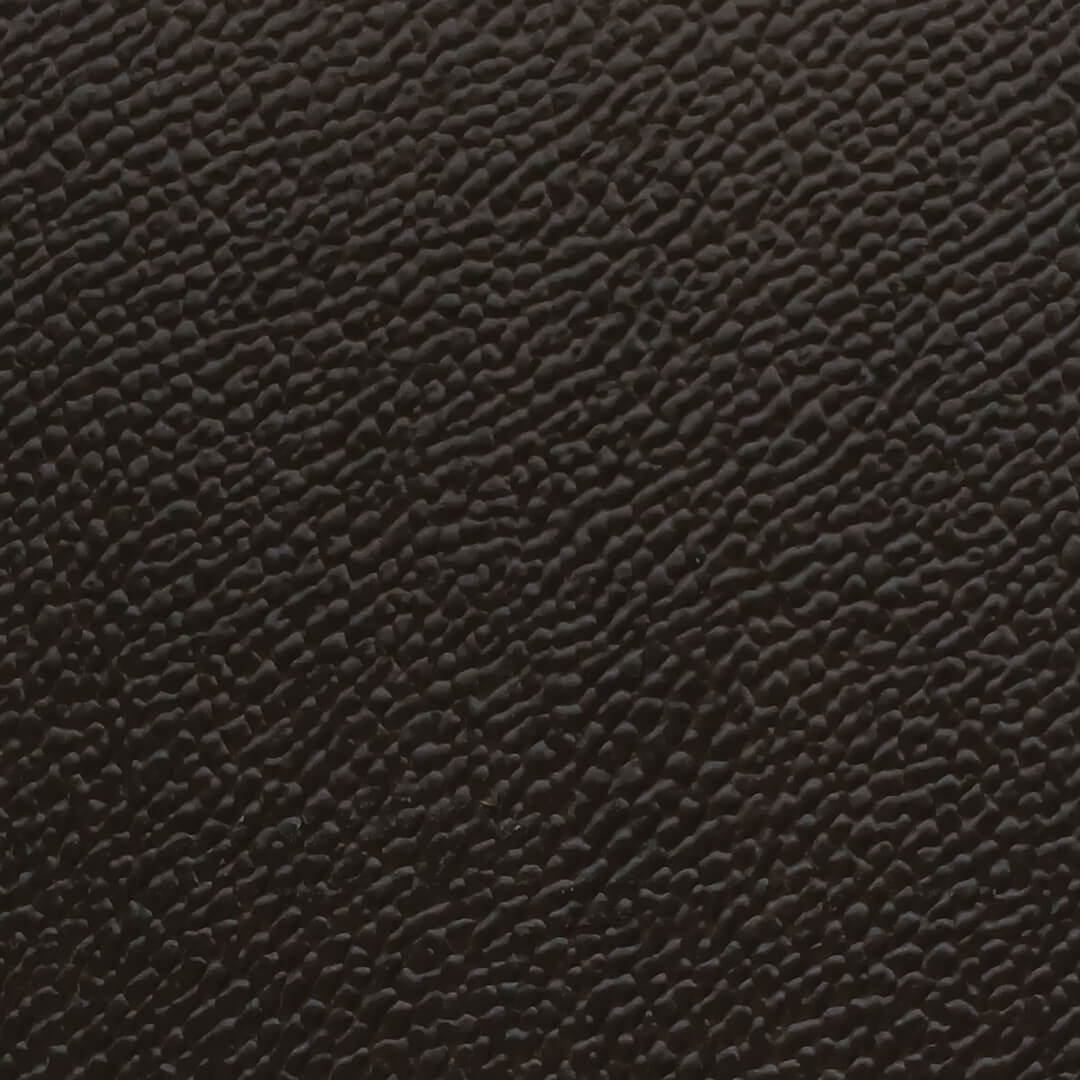

MK51SS BROWN NU SILVER SUNSTOP

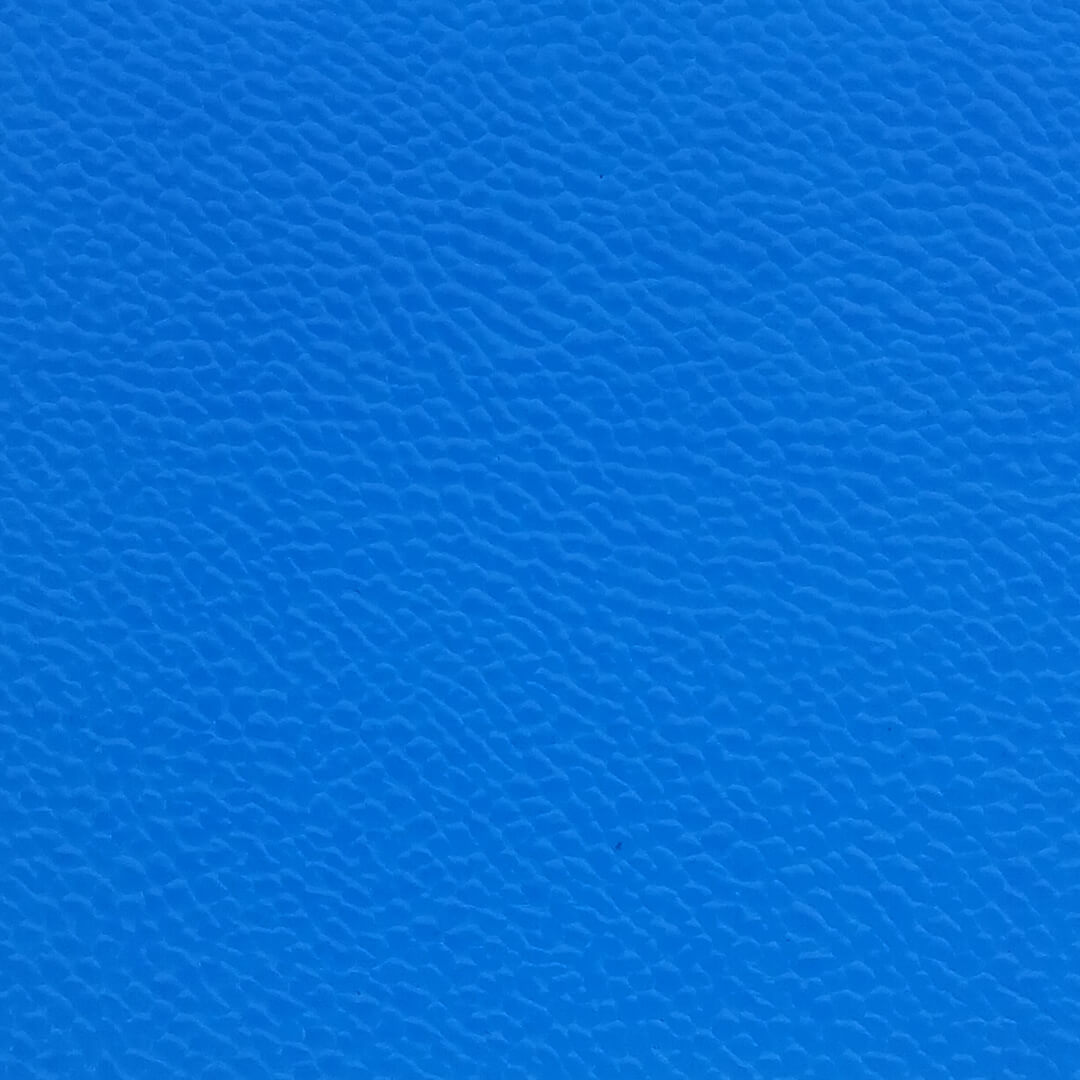

MK52 BLUE NU

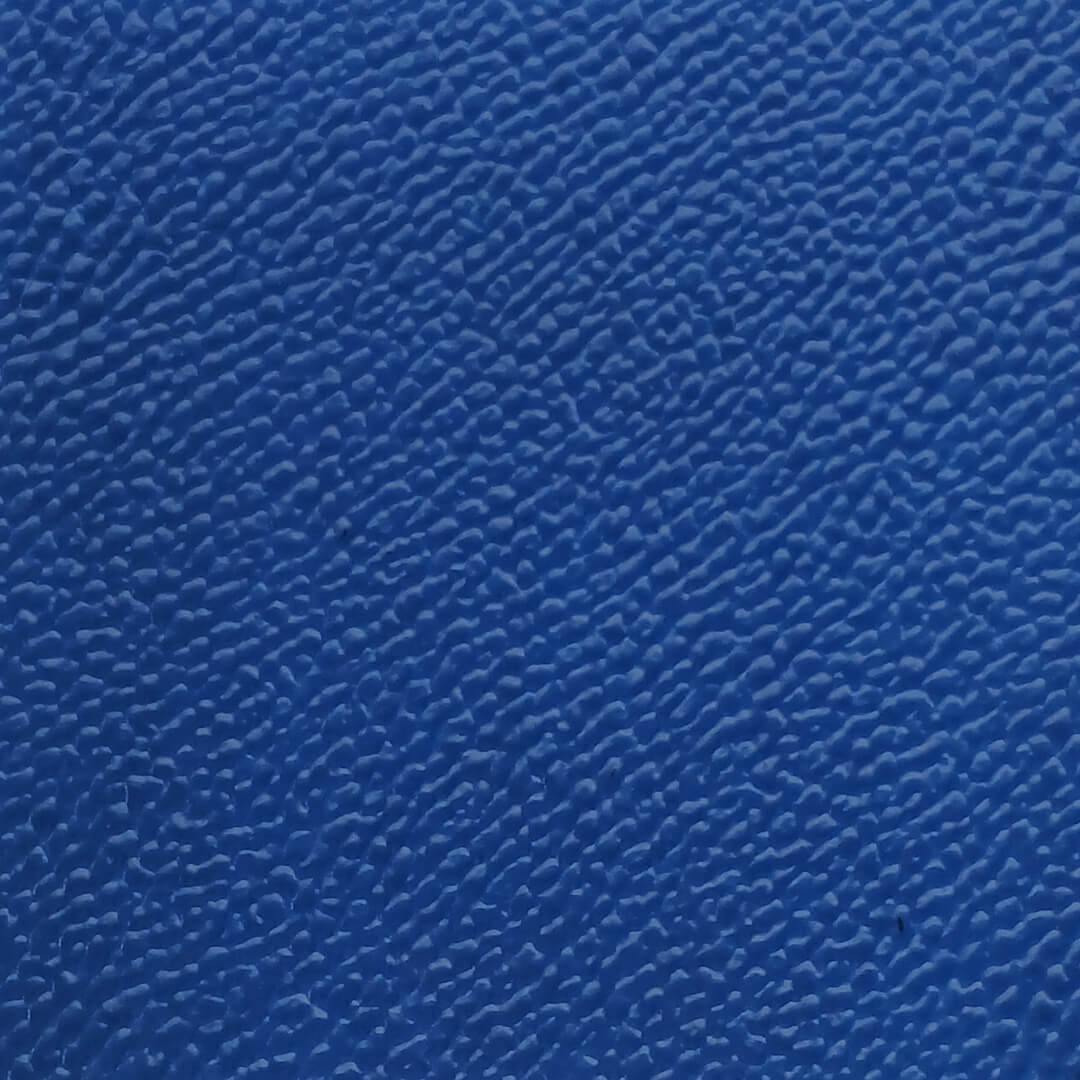

MK52SS BLUE NU SILVER SUNSTOP

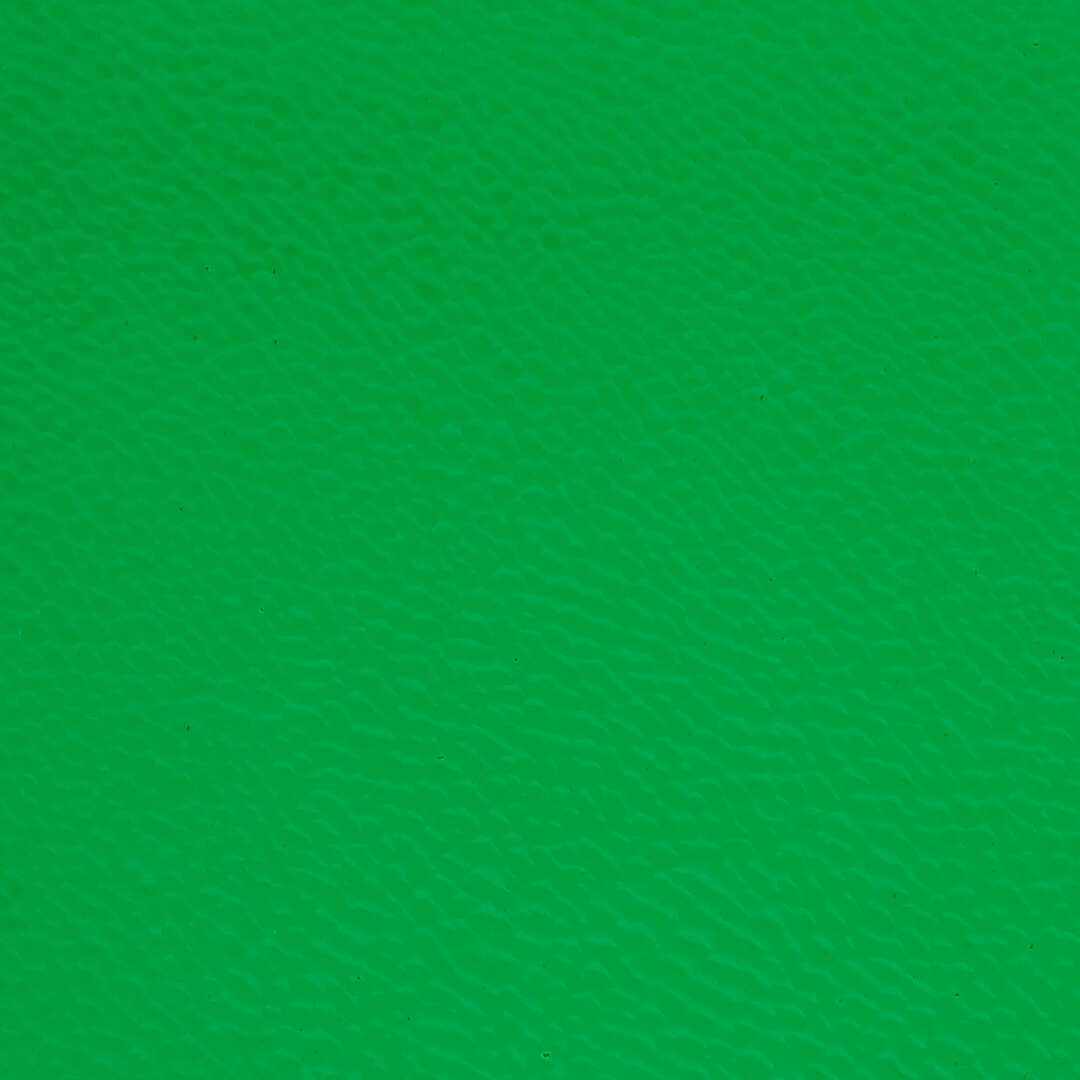

MK53 GREEN NU

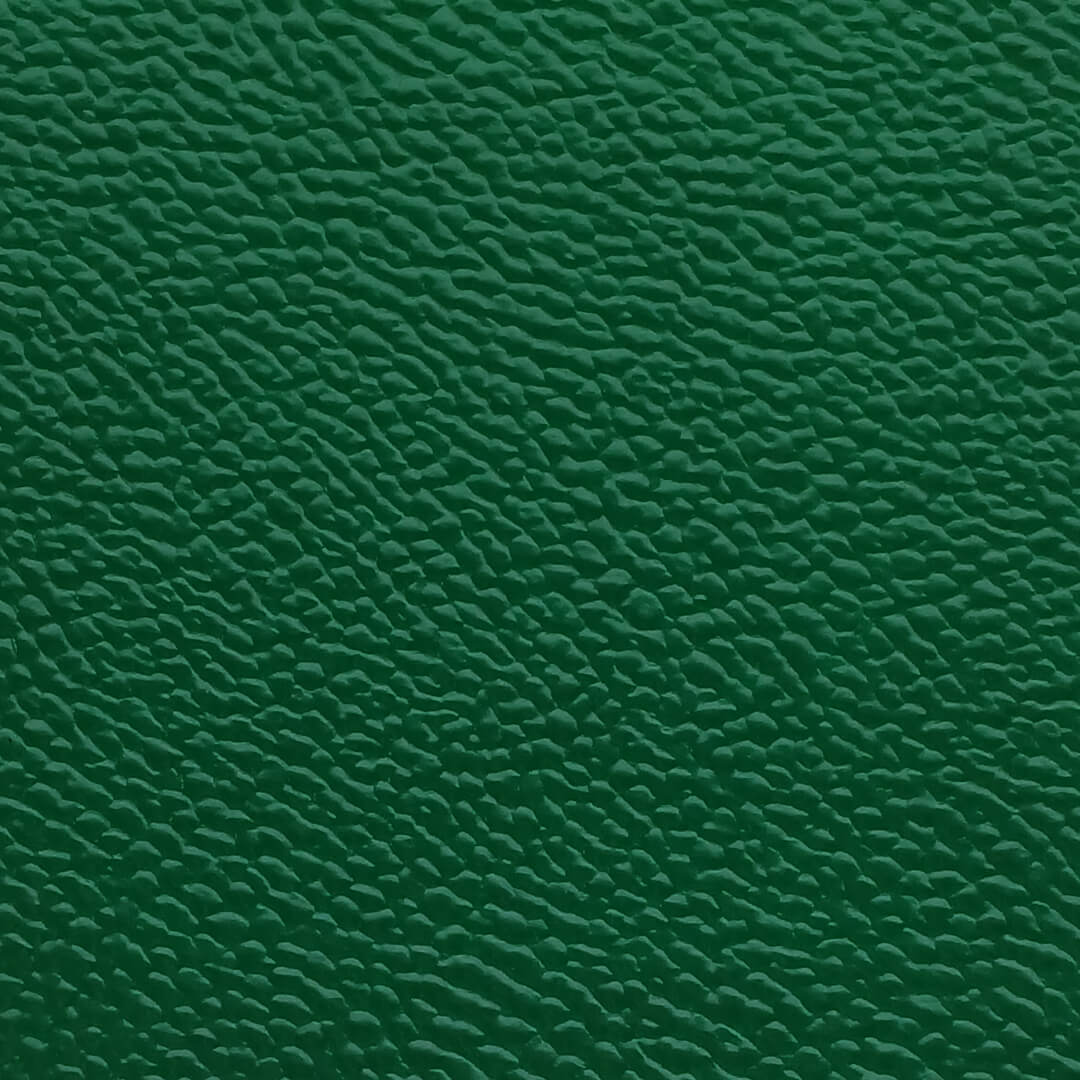

MK53SS GREEN NU SILVER SUNSTOP

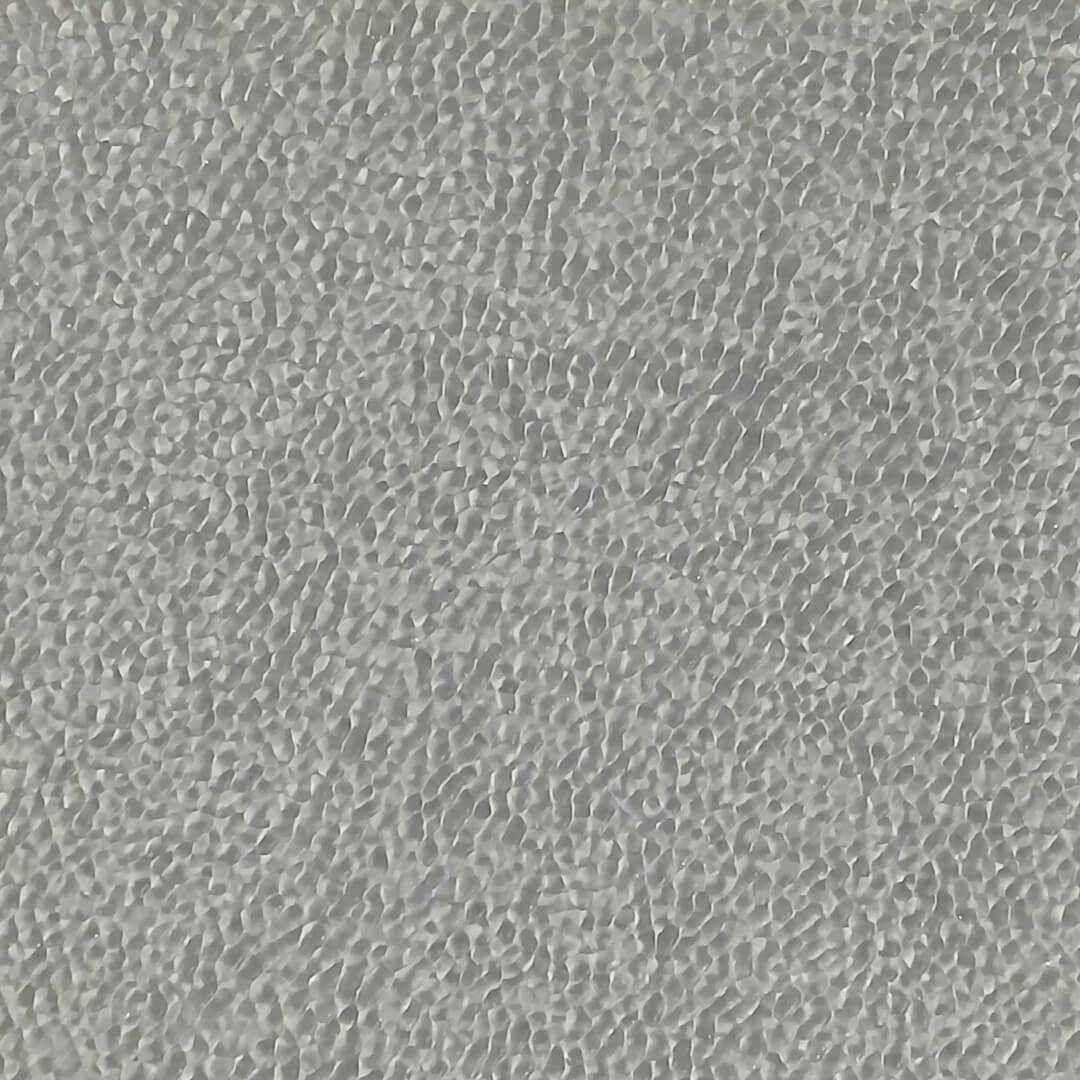

MK55 CLEAR NU

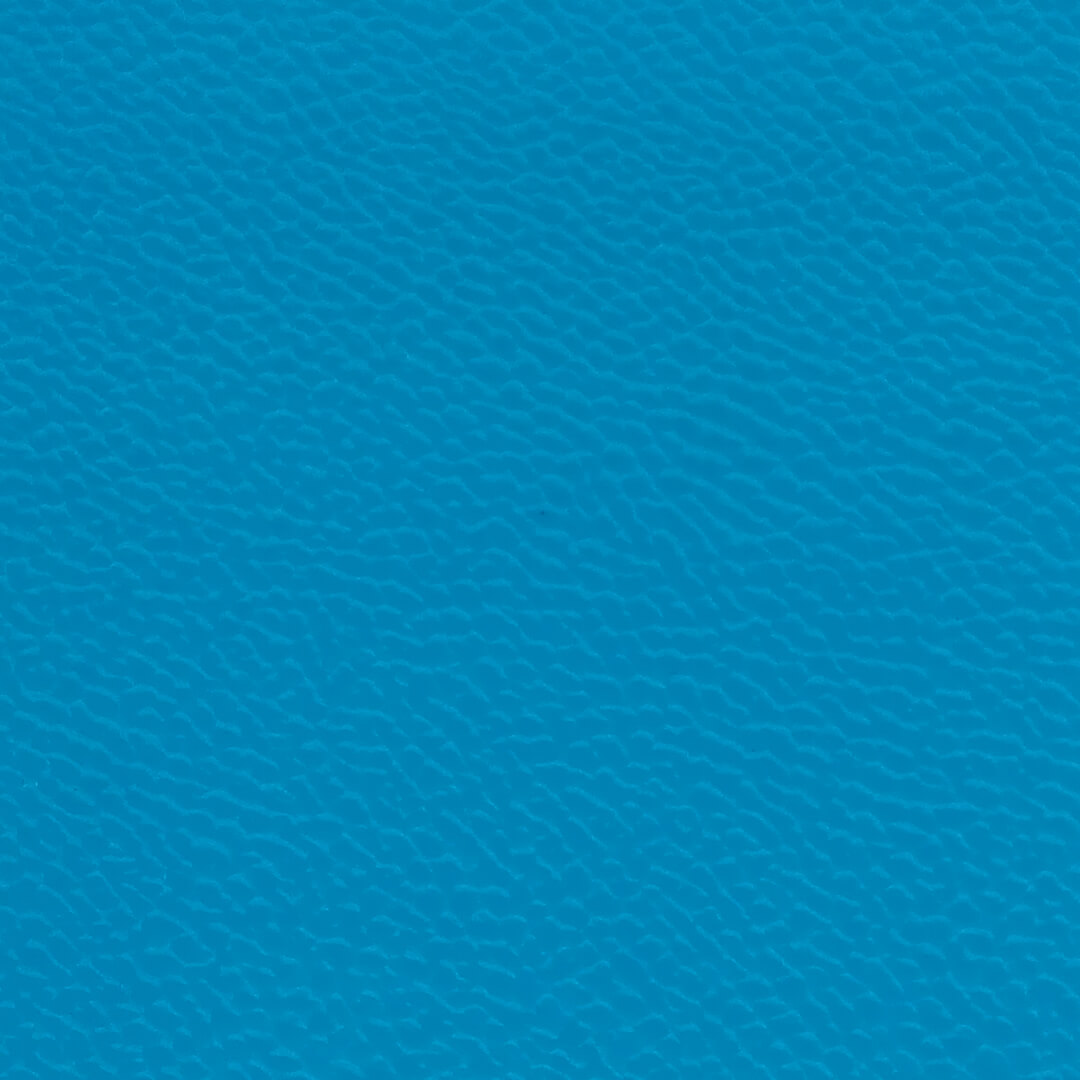

MK56 GREENISH NU

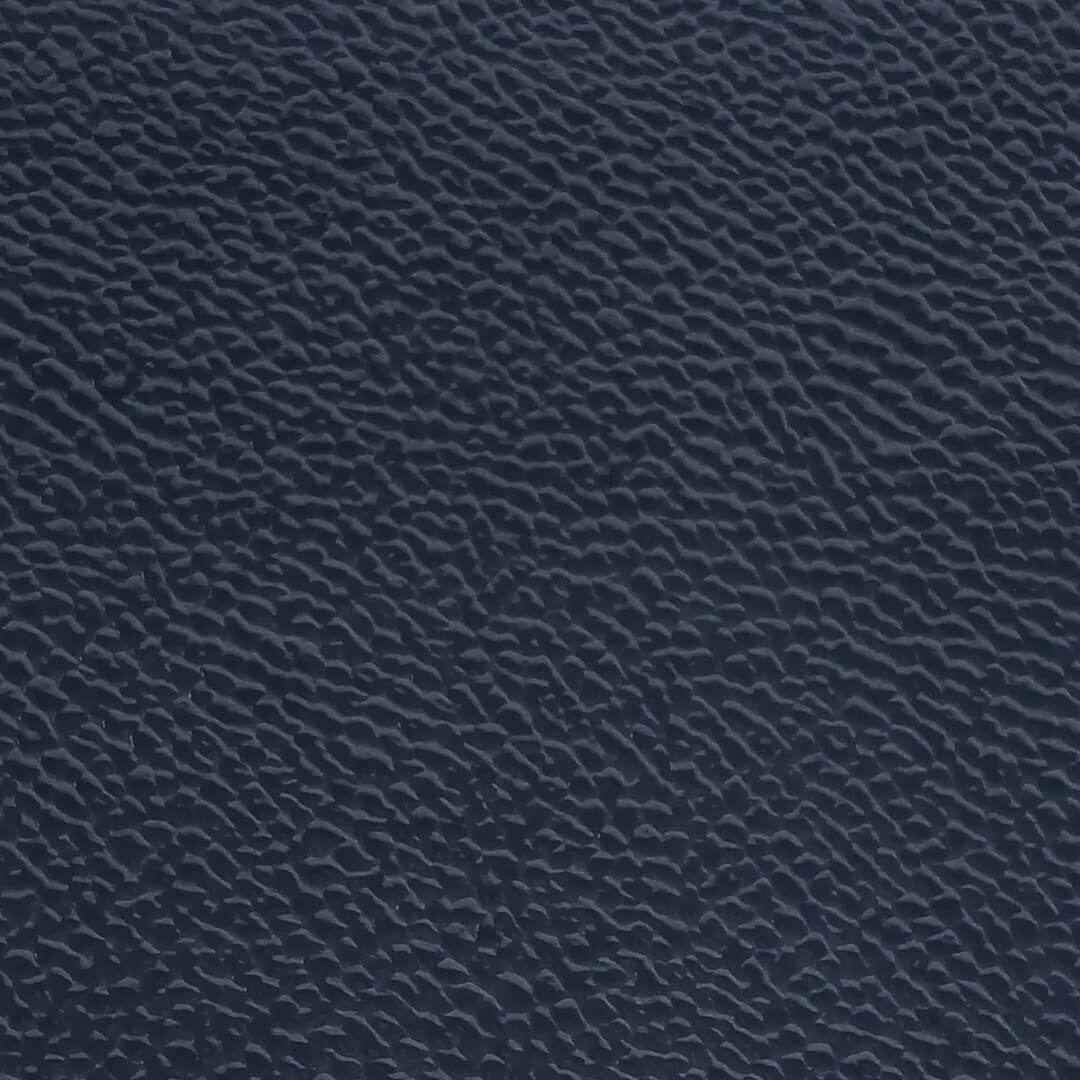

MK57 GREY NU

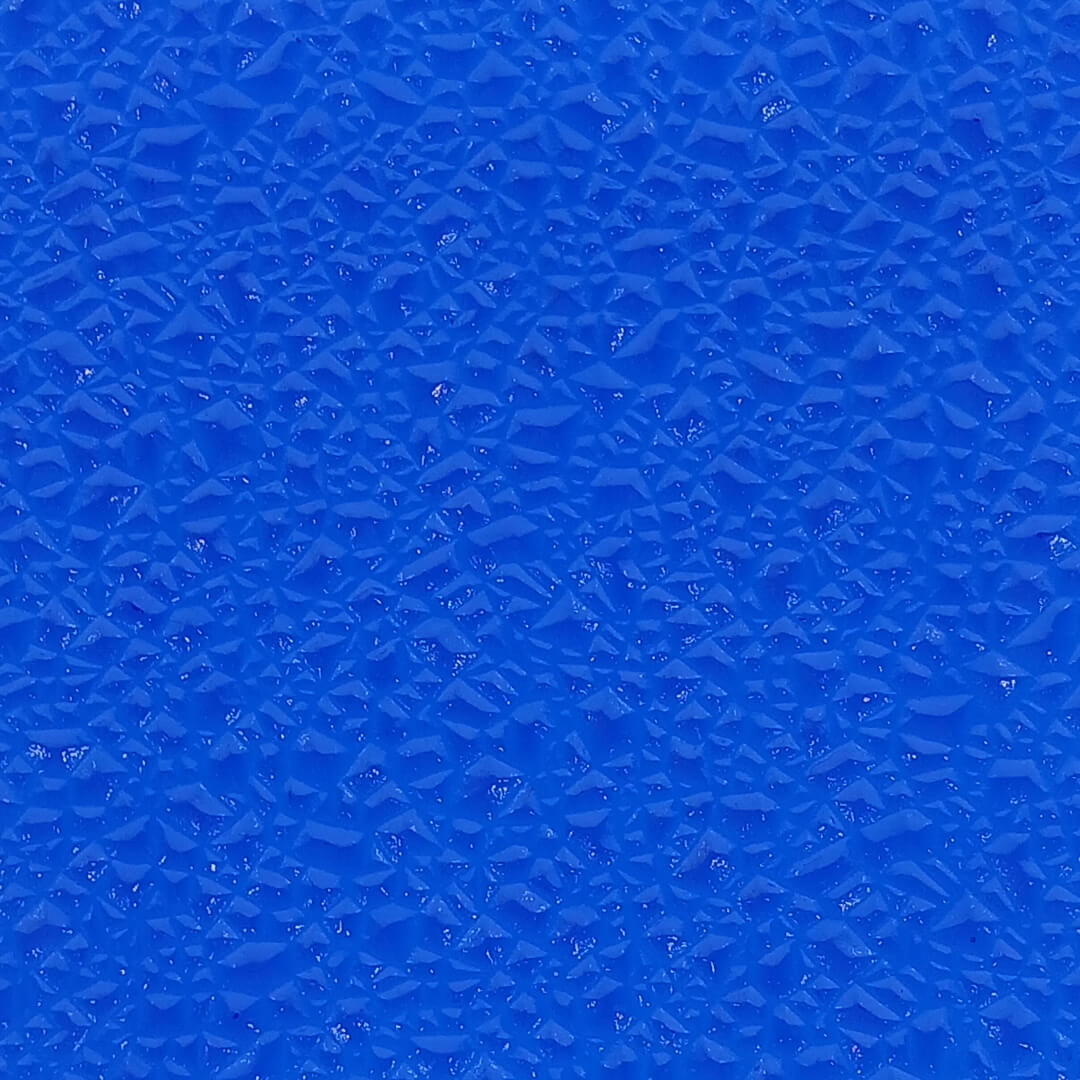

MK82 BLUE DIAMOND
Thickness (mm)
1.0, 2.0, 3.0, 4.0, 4.5, 5.0, 6.0, 7.0, 8.0, 10.0
Length (mm)
Up to 30500 (100′) or cut to size
Width (mm)
1212
Non-standard product (width, length, thickness, colour) are available subject to a minimum order quantity.
Thickness tolerance: subject to thickness tolerance.
Colour only for reference, order based on sealed sample.

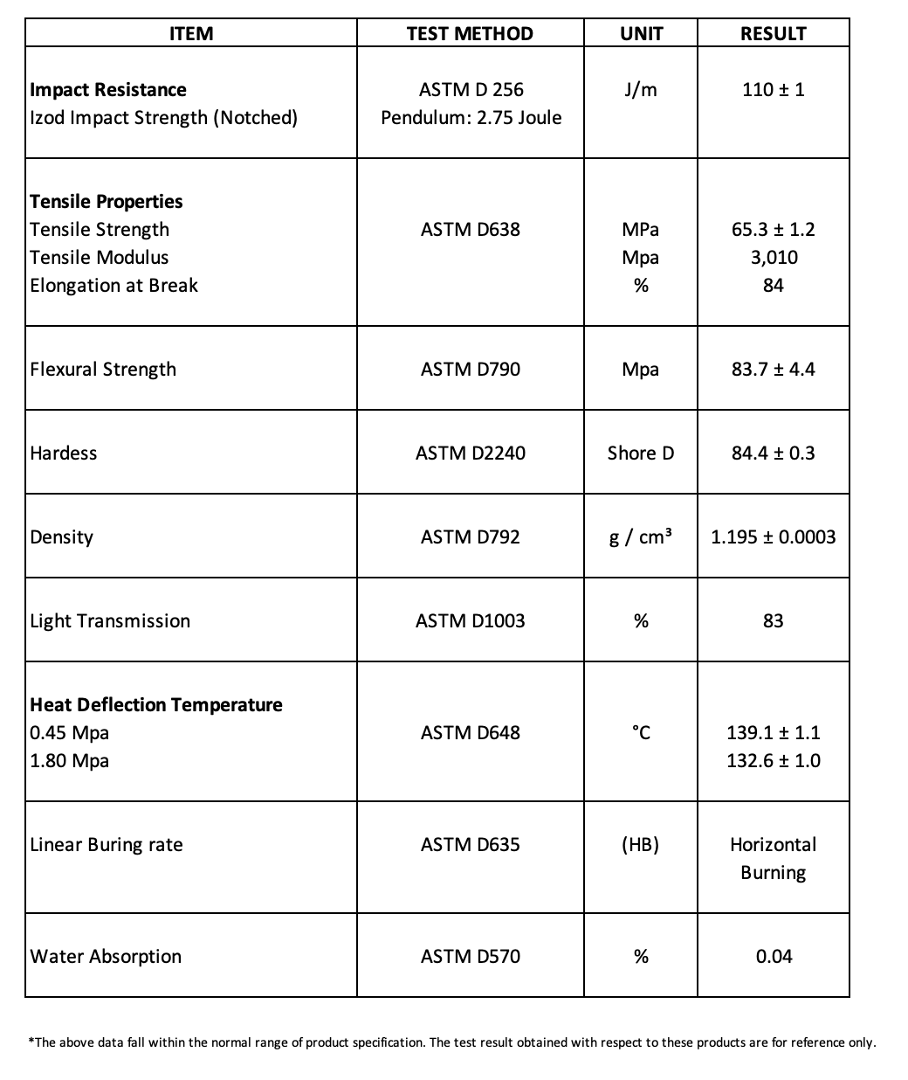

Product Characteristics

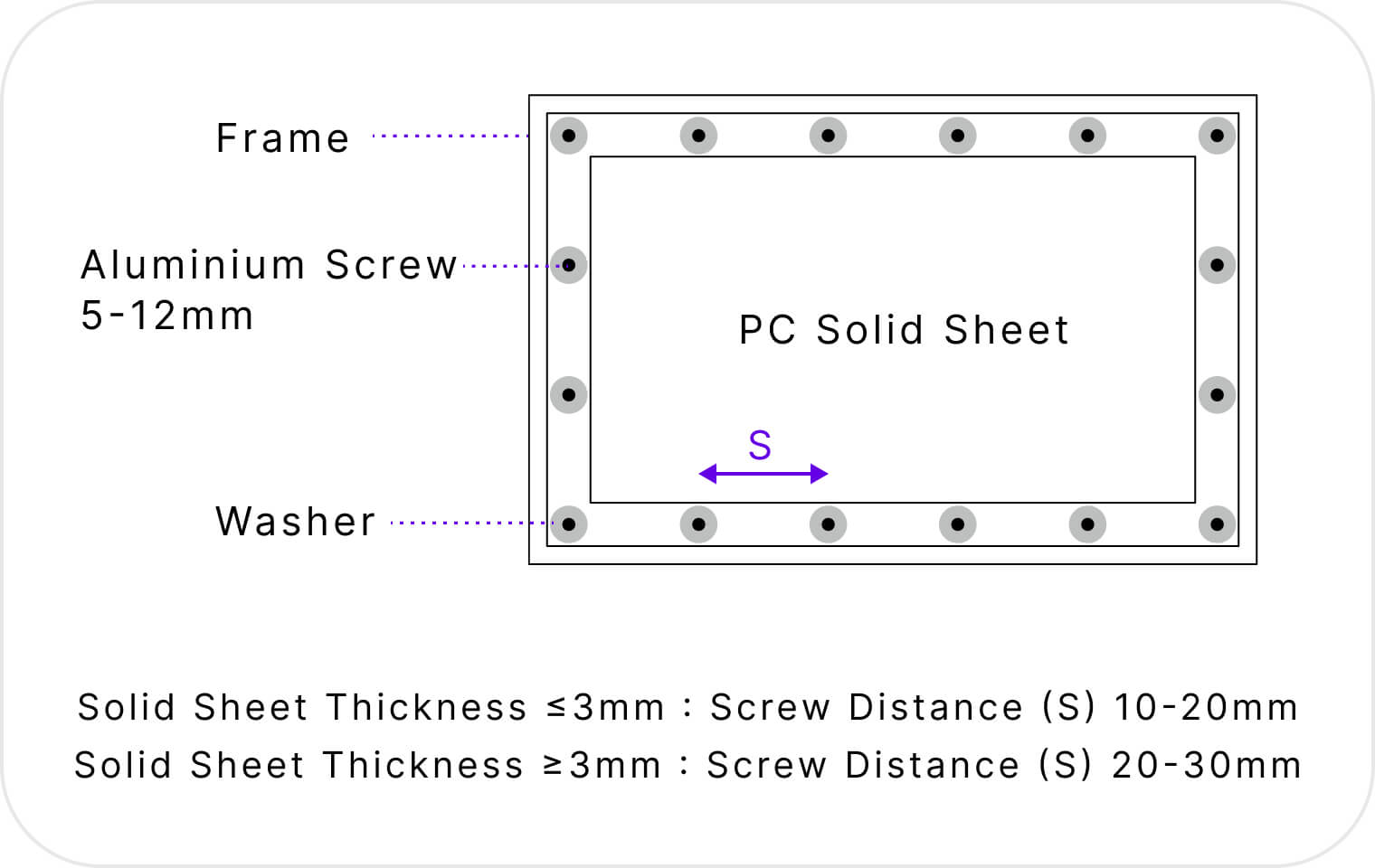

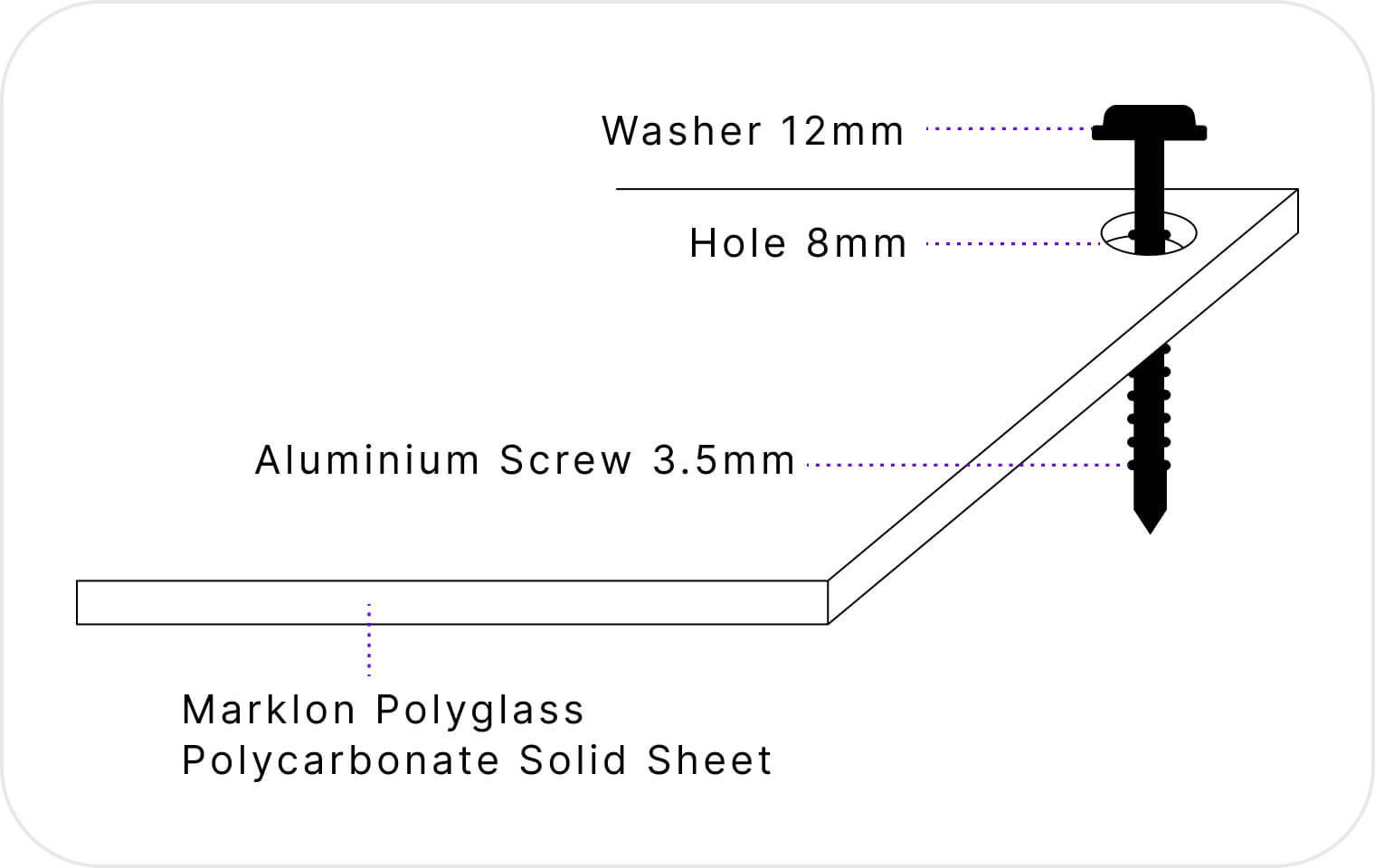

Recommended Installation method

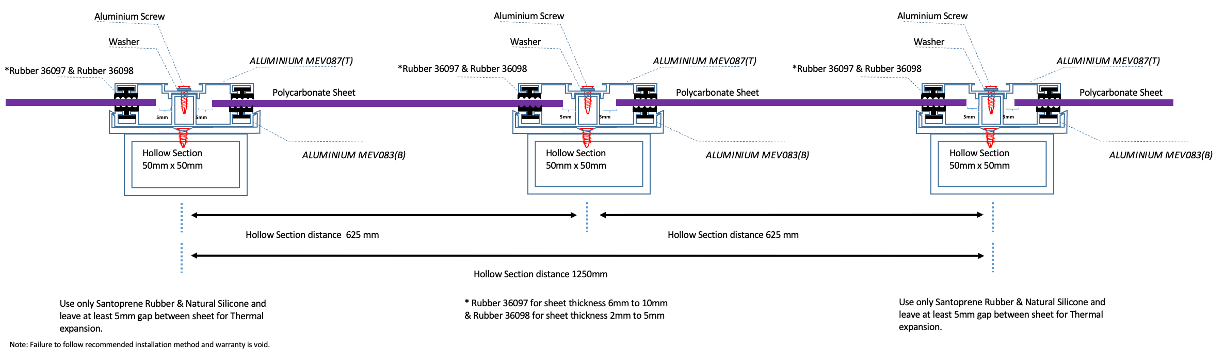

Method 1: Sheet Width 1212mm cut into half

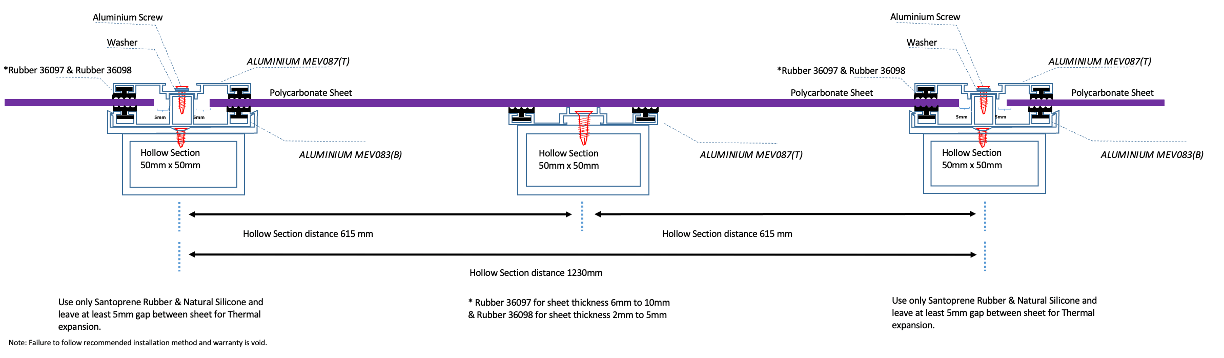

Method 2: Sheet Width 1212mm

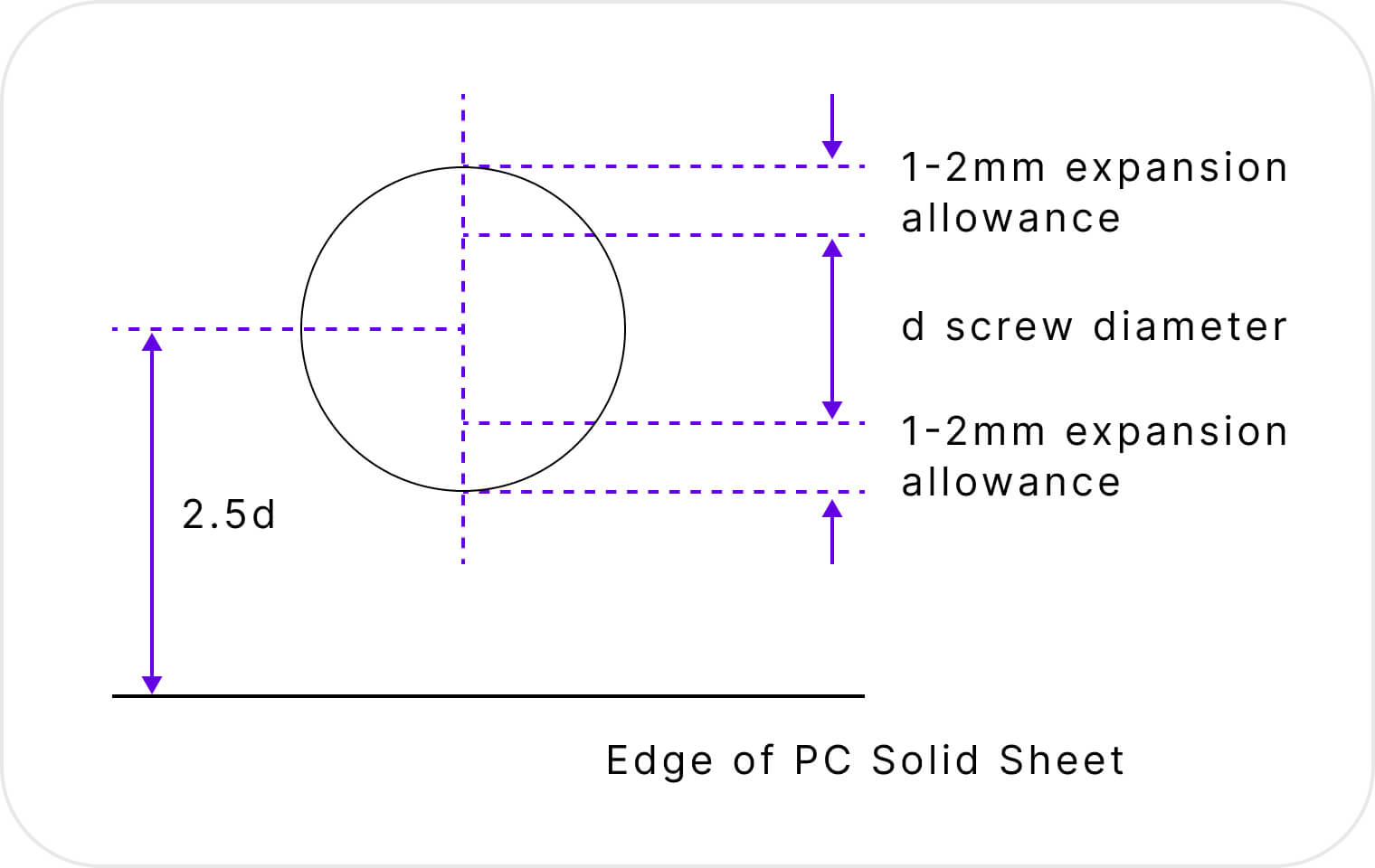

Use only new or sharp ground steel or carbide tipped drills. All holes must be drilled at least 40mm from the edge of the sheet. All holes must be at least 4mm bigger than screw for thermal expansion and contraction.

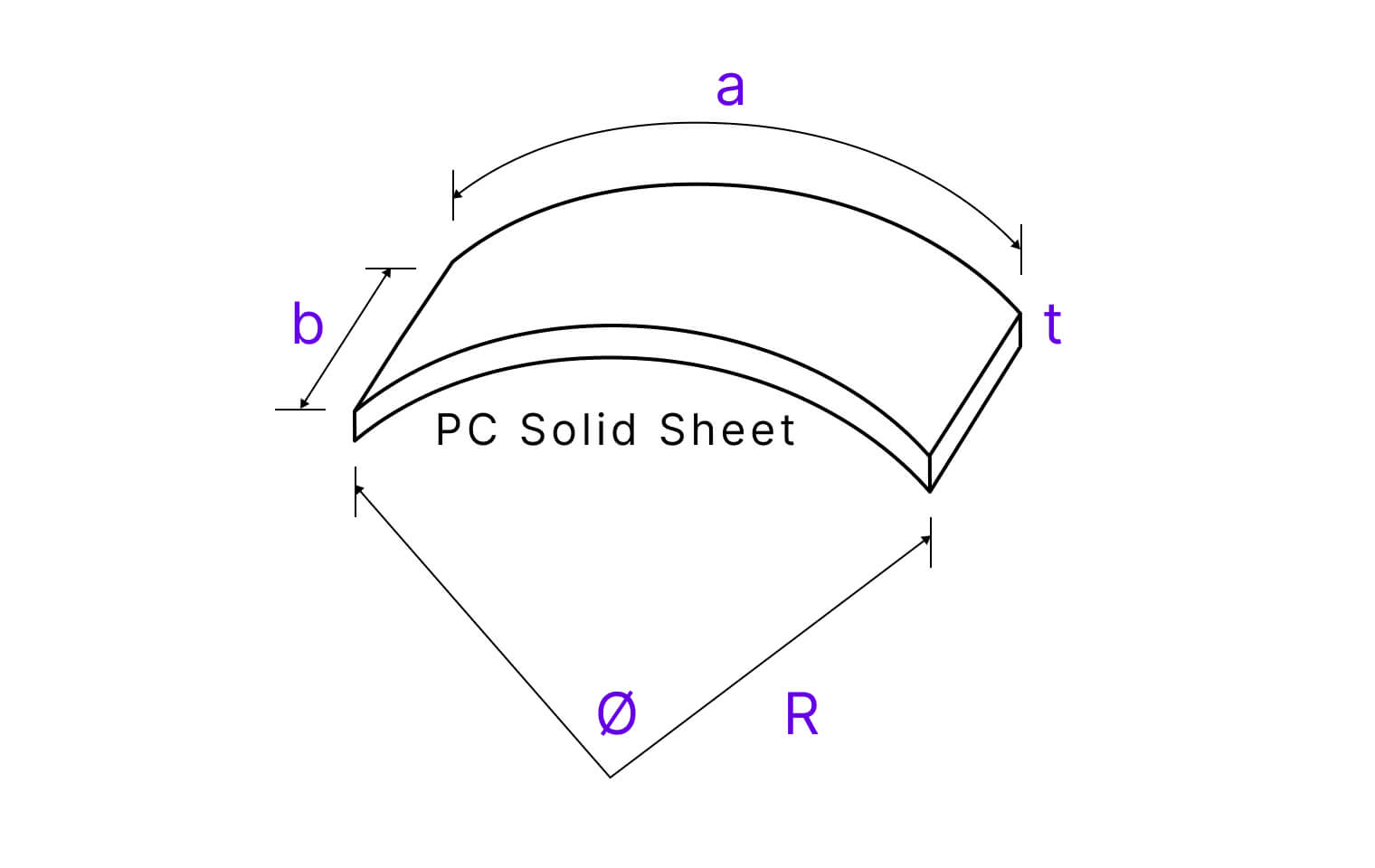

Marklon Polyglass® Polycarbonate Solid Sheet can be cold-form by : –
* a/b >= 2
* Ø < 90˚ * R >= 180t
